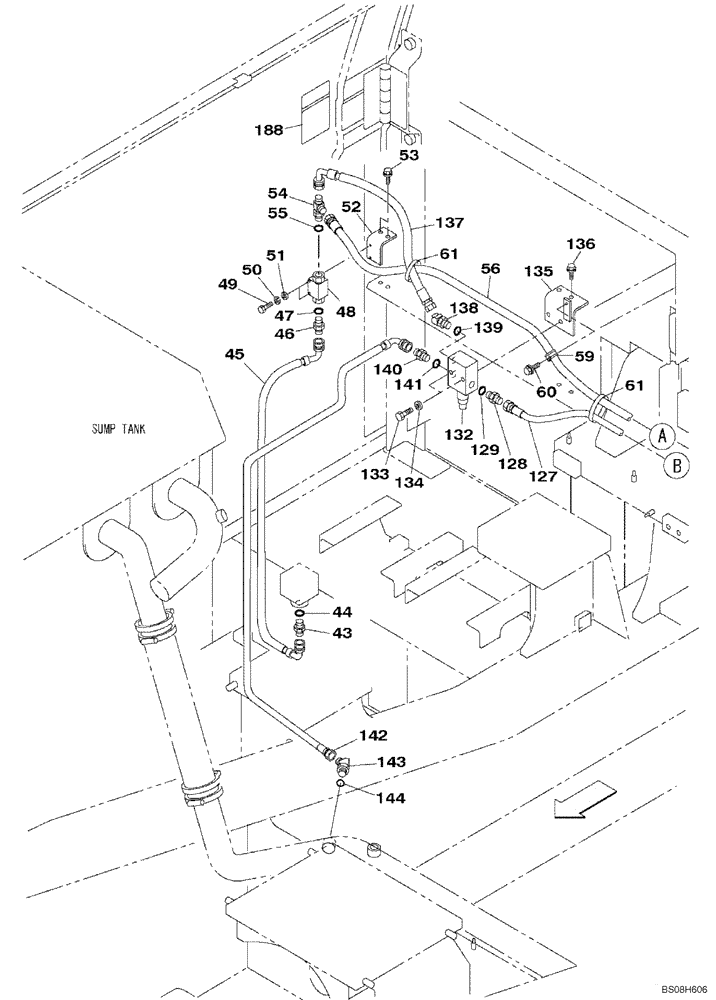

Запчасти Case CX470C (08-060-00[01]) - COUNTERWEIGHT REMOVAL SYSTEM (07) - HYDRAULIC SYSTEM

43

152747A1

ADAPTER

Incl. 44

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

KTJ2334

HYDRAULIC HOSE,9.52 mm ID x 650.00 mm

1шт.

46

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 48

1шт.

47

154475A1

O-RING

1шт.

48

KHJ17390

MANIFOLD VALVE

1шт.

49

102R005Y045R

BOLT

M5x45

2шт.

50

892-11005

LOCK WASHER,M5

2шт.

51

182-005SR

WASHER

2шт.

52

KTJ2300

BRACKET

1шт.

53

167182A1

BOLT,Sems, M8 x 25mm

2шт.

54

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 55

1шт.

55

154475A1

O-RING

1шт.

56

KTJ2301

HYDRAULIC HOSE,9.52 mm ID x 1600.00 mm

1шт.

59

KHJ1076

CLAMP

2шт.

60

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

M6x20

2шт.

61

150496A1

MOUNTING CLIP

2шт.

127

KHJ2428

HOSE ASSY.,9.50 mm ID x 1550.00 mm

1шт.

128

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 129

1шт.

129

154475A1

O-RING

1шт.

132

KTJ2293

VALVE PRESSURE RELIE

1шт.

133

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

M8 x 60

2шт.

134

153081A1

WASHER

2шт.

135

KTJ2312

BRACKET

1шт.

136

167182A1

BOLT,Sems, M8 x 25mm

M8 x 25

2шт.

137

KTJ2313

HYDRAULIC HOSE,9.52 mm ID x 310.00 mm

1шт.

138

157584A1

ELBOW

Incl. 138

1шт.

139

154475A1

O-RING

1шт.

140

159226A1

ADAPTER

Incl. 140

1шт.

141

154475A1

O-RING

1шт.

142

KHJ2329

HOSE

9 x 1750mm

1шт.

143

157584A1

ELBOW

Incl. 144

1шт.

144

154475A1

O-RING

1шт.

188

KHP1718

DECAL

1шт.
