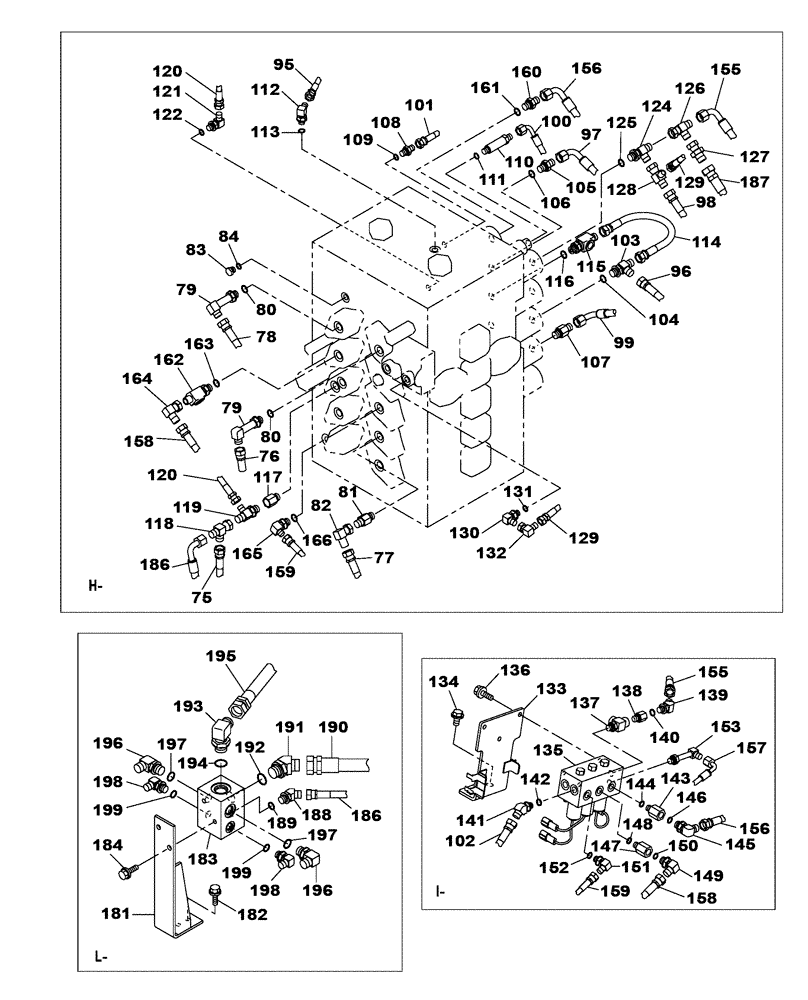

Запчасти Case CX470C (08-032-04[01]) - HYDRAULIC CIRCUIT - TRAVEL PILOT - WITH SAFETY VALVE (07) - HYDRAULIC SYSTEM

75

159071A1

HOSE

1шт.

76

157964A1

HOSE

1шт.

77

157962A1

HOSE ASSY.

1шт.

78

152763A1

HOSE ASSY.

1шт.

79

KHJ1442

ELBOW

2шт.

Include(s) 80

1шт.

80

154475A1

O-RING

1шт.

81

KAJ2851

ADAPTER

1шт.

82

153526A1

ELBOW

1шт.

83

159002A1

PLUG

1шт.

Include(s) 84

1шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

KHJ25510

HOSE ASSY.

1шт.

96

157964A1

HOSE

1шт.

97

159228A1

HOSE ASSY.

1шт.

98

159071A1

HOSE

1шт.

99

161175A1

HOSE ASSY.

1шт.

100

KHJ1221

HYDRAULIC HOSE

1шт.

101

152581A1

HOSE,6.3mm ID x 1900mm L

1шт.

102

159074A1

HOSE

1шт.

103

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

1шт.

Include(s) 104

1шт.

104

154475A1

O-RING

1шт.

105

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Include(s) 106

1шт.

106

154475A1

O-RING

1шт.

107

KAJ2851

ADAPTER

1шт.

108

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Include(s) 109

1шт.

109

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

110

163104A1

ADAPTER

1шт.

Include(s) 111

1шт.

111

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

112

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 113

1шт.

113

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

114

165781A1

HYDRAULIC HOSE,9.50 mm ID x 350.00 mm

1шт.

115

KHJ2847

ADAPTER

1шт.

Include(s) 116

1шт.

116

154475A1

O-RING

1шт.

117

KHJ13790

STUD

1шт.

118

KHJ2234

TEE

1шт.

119

163422A1

TEE

1шт.

120

167867A1

HYDRAULIC HOSE,6.30 mm ID x 800.00 mm

1шт.

121

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 122

1шт.

122

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

124

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

1шт.

Include(s) 125

1шт.

125

154475A1

O-RING

1шт.

126

KHJ2234

TEE

1шт.

127

KHJ2787

ADAPTER

1шт.

128

KHJ18490

TEE

1шт.

129

167866A1

HYDRAULIC HOSE,6.30 mm ID x 700.00 mm

1шт.

130

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 131

1шт.

131

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

132

163814A1

ELBOW

1шт.

133

KTJ14180

BRACKET

1шт.

134

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

135

KHJ23870

VALVE

1шт.

136

166350A1

BOLT

3шт.

137

KHJ12530

TEE

1шт.

138

KHJ13640

STUD

1шт.

139

161087A1

ELBOW

1шт.

Include(s) 140

1шт.

140

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

141

161087A1

ELBOW

1шт.

Include(s) 142

1шт.

142

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

143

KHJ1584

UNION

1шт.

Include(s) 144

1шт.

144

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

145

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

Include(s) 146

1шт.

146

154475A1

O-RING

1шт.

147

KHJ1584

UNION

1шт.

Include(s) 148

1шт.

148

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

149

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

Include(s) 150

1шт.

150

154475A1

O-RING

1шт.

151

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 151

1шт.

152

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

153

KHJ11720

ELBOW

1шт.

155

KTJ1639

HOSE

1шт.

156

KAJ2467

HYDRAULIC HOSE

1шт.

157

161657A1

HOSE ASSY.

1шт.

158

152753A1

HOSE,95.00 mm ID x 1100.00 mm

1шт.

159

KSJ0675

HOSE

1шт.

160

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Include(s) 161

1шт.

161

154475A1

O-RING

1шт.

162

KHJ2847

ADAPTER

1шт.

Include(s) 163

1шт.

163

154475A1

O-RING

1шт.

164

153526A1

ELBOW

1шт.

165

156554A1

ELBOW

1шт.

Include(s) 166

1шт.

166

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

181

KTJ12330

BRACKET

1шт.

182

166351A1

BOLT,Sems, M10 x 20mm

2шт.

183

KTJ12320

MANIFOLD VALVE

1шт.

184

166351A1

BOLT,Sems, M10 x 20mm

2шт.

186

KHJ17180

HYDRAULIC HOSE

1шт.

187

KHJ19380

HYDRAULIC HOSE,12.70 mm ID x 3700.00 mm

1шт.

188

157584A1

ELBOW

1шт.

189

154475A1

O-RING

1шт.

190

KHJ21360

HYDRAULIC HOSE,19.00 mm ID x 1800.00 mm

1шт.

191

157586A1

ELBOW

1шт.

Include(s) 192

1шт.

192

154503A1

O-RING

1шт.

193

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

1шт.

Include(s) 194

1шт.

194

154503A1

O-RING

1шт.

195

KTJ12350

HYDRAULIC HOSE

1шт.

196

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

2шт.

Include(s) 197

1шт.

197

154487A1

O-RING

1шт.

198

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

2шт.

Include(s) 199

1шт.

199

154475A1

O-RING

1шт.
