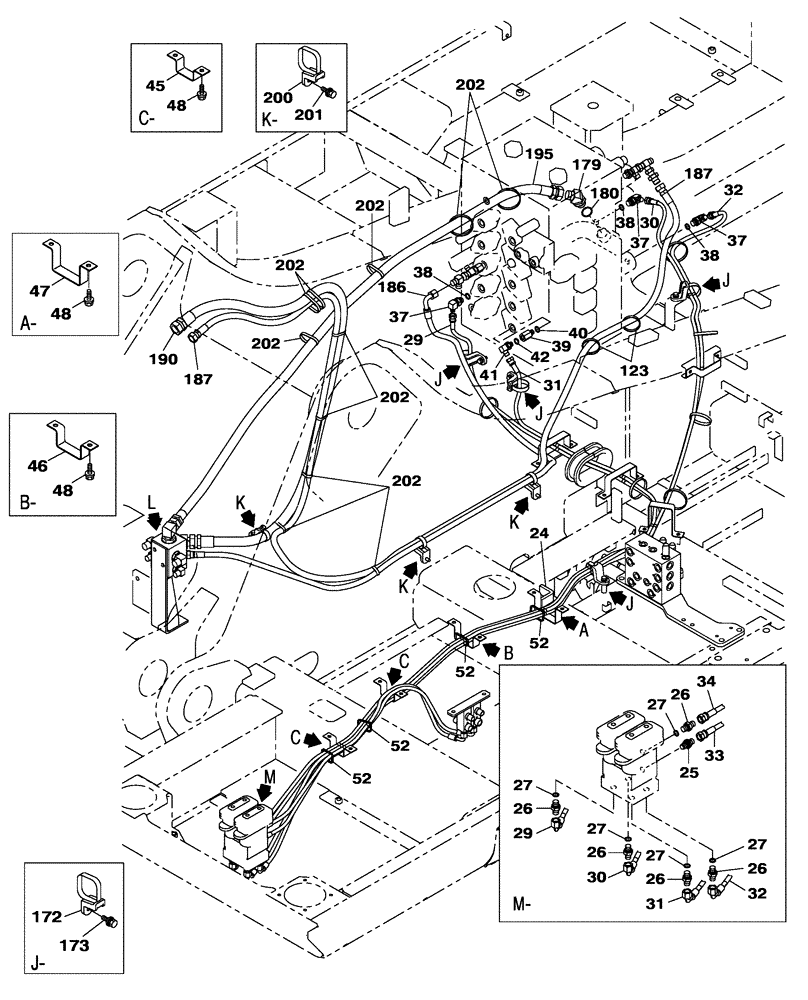

Запчасти Case CX470C (08-032-03[01]) - HYDRAULIC CIRCUIT - TRAVEL PILOT - WITH SAFETY VALVE (07) - HYDRAULIC SYSTEM

24

KHJ1764

SEAL

1шт.

25

161841A1

HYD CONNECTOR

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

5шт.

Include(s) 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

29

KHJ17550

HOSE

3350 mm

1шт.

30

KHJ15170

HYDRAULIC HOSE

3500 mm

1шт.

31

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

3100 mm

1шт.

32

KHJ12230

HYDRAULIC HOSE

3450 mm

1шт.

33

KHJ2092

HOSE

1100 mm

1шт.

37

156554A1

ELBOW

3шт.

Include(s) 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

39

KHJ1212

STUD

1шт.

Include(s) 40

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

41

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

KHJ1220

COLLAR

2шт.

46

KHJ13770

COLLAR

2шт.

47

KHJ24020

CLAMP

2шт.

48

166345A1

BOLT

12шт.

52

150071A1

MOUNTING CLIP

4шт.

123

150071A1

MOUNTING CLIP

4шт.

172

KHR2581

CLAMP

6шт.

173

KHJ1215

BOLT,Spcl

6шт.

179

157586A1

ELBOW

1шт.

Include(s) 180

1шт.

180

154503A1

O-RING

1шт.

186

KHJ17180

HYDRAULIC HOSE

1шт.

187

KHJ19380

HYDRAULIC HOSE,12.70 mm ID x 3700.00 mm

1шт.

190

KHJ21360

HYDRAULIC HOSE,19.00 mm ID x 1800.00 mm

1шт.

195

KTJ12350

HYDRAULIC HOSE

1шт.

200

KHR2581

CLAMP

3шт.

201

KHJ1215

BOLT,Spcl

3шт.

202

150071A1

MOUNTING CLIP

13шт.
