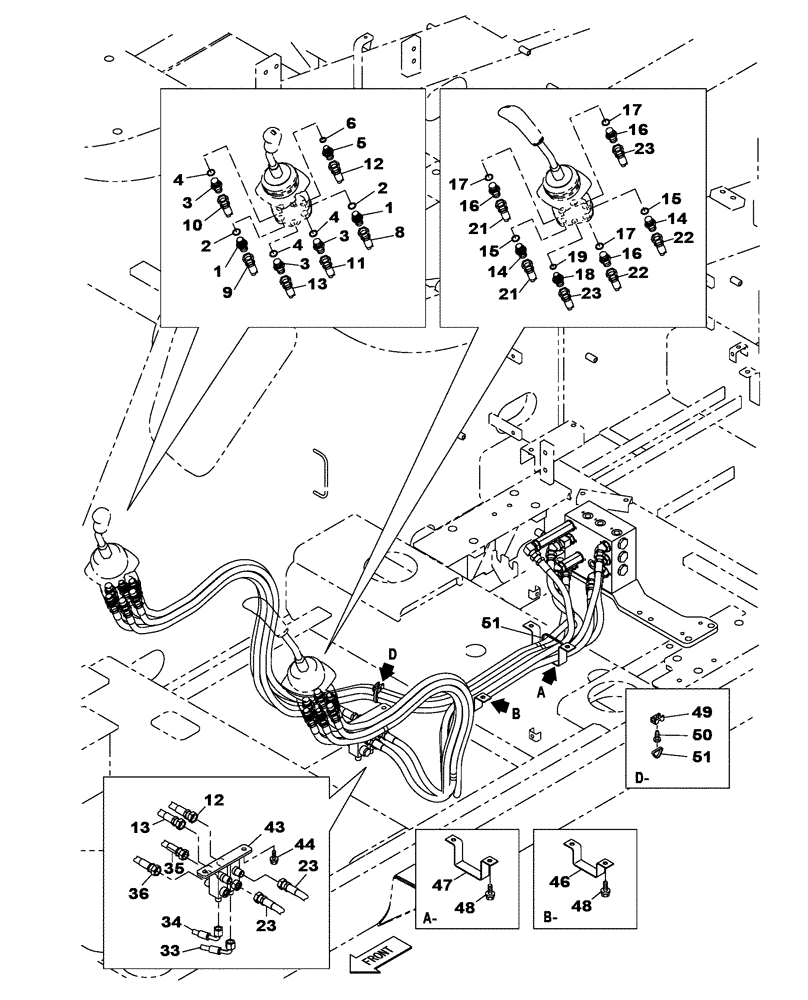

Запчасти Case CX470C (08-031-00[01]) - HYDRAULIC CIRCUIT - TRAVEL PILOT - STD (07) - HYDRAULIC SYSTEM

1

KHJ1402

ADAPTER

2шт.

Include(s) 2

1шт.

2

154475A1

O-RING

1шт.

3

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

3шт.

Include(s) 4

1шт.

4

154475A1

O-RING

1шт.

5

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

1шт.

Include(s) 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

159211A1

HYDRAULIC HOSE

2000 mm

1шт.

9

KHJ22430

HYDRAULIC HOSE

2050 mm

1шт.

10

159211A1

HYDRAULIC HOSE

2000 mm

1шт.

11

159211A1

HYDRAULIC HOSE

2000 mm

1шт.

12

159213A1

HYDRAULIC HOSE

1150 mm

1шт.

13

159213A1

HYDRAULIC HOSE

1150 mm

1шт.

14

KHJ1402

ADAPTER

2шт.

Include(s) 15

1шт.

15

154475A1

O-RING

1шт.

16

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

3шт.

Include(s) 17

1шт.

17

154475A1

O-RING

1шт.

18

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

1шт.

Include(s) 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

159217A1

HYDRAULIC HOSE

1850 mm

2шт.

22

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

2шт.

23

159213A1

HYDRAULIC HOSE

1150 mm

2шт.

33

KHJ2092

HOSE

1100 mm

1шт.

34

KHJ2092

HOSE

1100 mm

1шт.

35

KHJ23000

FLEXIBLE HOSE

950 mm

1шт.

36

KHJ2623

HOSE

1000 mm

1шт.

43

KRJ27381

HYDRAULIC MANIFOLD

1шт.

44

166350A1

BOLT

M8 x 20

2шт.

46

KHJ13770

COLLAR

2шт.

47

KHJ24020

CLAMP

2шт.

48

166345A1

BOLT

M8 x 16

12шт.

49

150860A1

COLLAR

1шт.

50

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

51

150496A1

MOUNTING CLIP

2шт.
