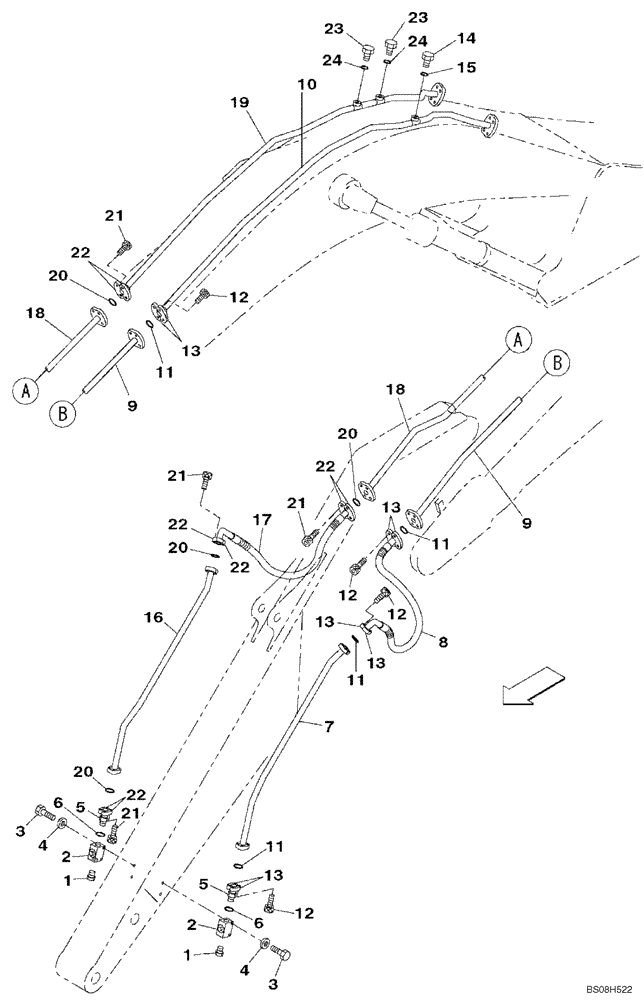

Запчасти Case CX470C (08-027-01[01]) - HYDRAULICS, AUXILIARY ATTACHMENT - ARM 4.85M (07) - HYDRAULIC SYSTEM

1

162335A1

PLUG

2шт.

2

KHV12250

SHUT-OFF VALVE

2шт.

3

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

M12 x 100

4шт.

4

150811A1

WASHER

4шт.

5

KHV0451

FITTING

Incl 6

2шт.

6

154559A1

O-RING

1шт.

7

KTV15441

HYD TUBE,42.70mm OD x 2921.40mm L

1шт.

8

KBV16090

HYDRAULIC HOSE,31.80 mm ID x 2150.00 mm

1шт.

9

KTV15010

HYD TUBE,42.70mm OD x 2064.40mm L

1шт.

10

KTV13030

HYD TUBE,42.70mm OD x 3397.40mm L

1шт.

11

164450A1

O-RING

4шт.

12

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50

16шт.

13

150124A1

FLANGE

8шт.

14

152924A1

PLUG

Incl 15

1шт.

15

154503A1

O-RING

1шт.

16

KTV15431

HYD TUBE,42.70mm OD x 2921.40mm L

1шт.

17

KBV16090

HYDRAULIC HOSE,31.80 mm ID x 2150.00 mm

1шт.

18

KTV15000

HYD TUBE,42.70mm OD x 2064.40mm L

1шт.

19

KTV13020

HYD TUBE,42.70mm OD x 3397.40mm L

1шт.

20

164450A1

O-RING

4шт.

21

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50

16шт.

22

150124A1

FLANGE

8шт.

23

152924A1

PLUG

Incl 24

2шт.

24

154503A1

O-RING

1шт.
