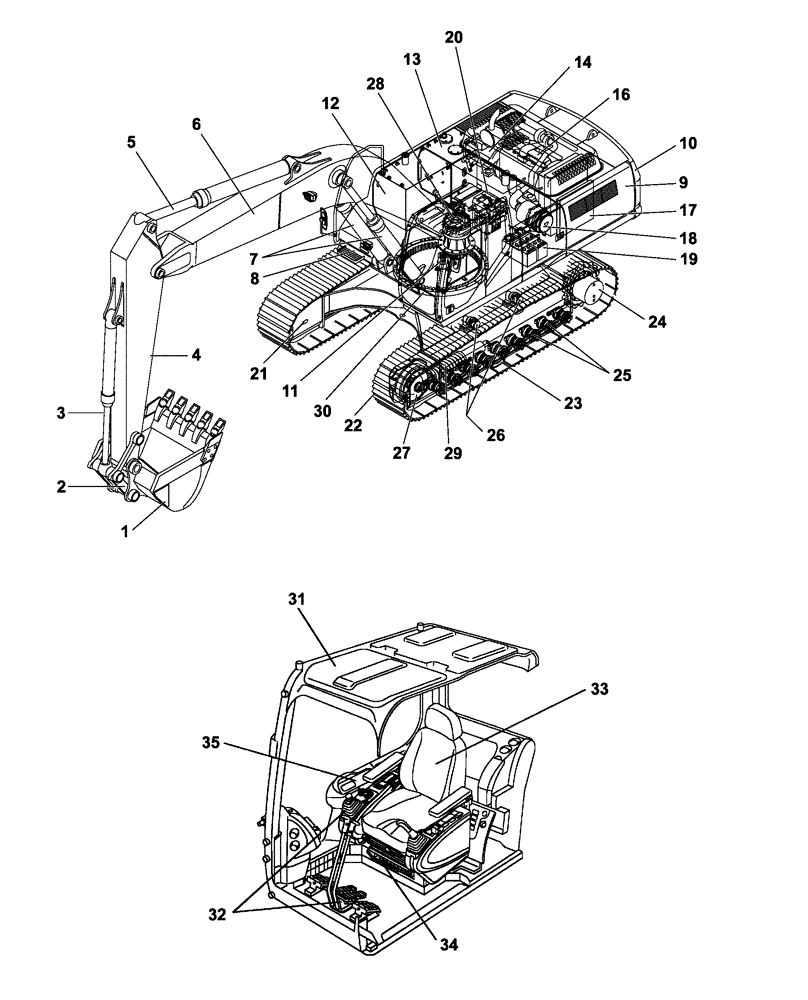

Запчасти Case CX470C (00-001-00[01]) - COMPONENT INDEX (00) - PICTORIAL INDEX

1

BUCKET - See Figure(s) 09-310-00 01 - 09-313-00 01

1шт.

2

BUCKET CONTROL - See Figure(s) 09-300-00 01, 09-300-01 01

1шт.

3

BUCKET CYLINDER - See Figure(s) 08-019-00 01 - 08-021-00 01, And 08-303-00 01, 08-304-00 01

1шт.

4

DIPPER - See Figure(s) 09-200-00 01 - 09-211-00 01

1шт.

5

DIPPER CYLINDER - See Figure(s) 08-016-00 01 - 08-018-01 01, 08-302-00 1, 08-302-01 01

1шт.

6

MONOBLOCK BOOM - See Figure(s) 09-100-00 01 - 09-109-00 01

1шт.

7

BOOM CYLINDER - See Figure(s) 08-012-00 01 - 08-015-00 01, And 08-300-00 01 - 08-301-01 01

1шт.

8

UPPERSTRUCTURE CHASSIS - See Figure(s) 09-002-00 01, 09-003-00 01

1шт.

9

HOUSE - See Figure(s) 09-006-00 01 - 09-009-01 01

1шт.

10

COUNTERWEIGHT - See Figure(s) 09-004-00 01

1шт.

11

SWING JOINT - See Figure(s) 07-010-00 01

1шт.

12

FUEL TANK, FUEL SYSTEM - See Figure(s) 03-001-00 01 - 03-042-01 01

1шт.

13

HYDRAULIC RESERVOIR, HYDRAULIC SYSTEM - See Figure(s) 08-001-00 01 - 08-097-00 01

1шт.

14

HYDRAULIC PUMP - See Figure(s) 08-120-00 01

1шт.

15

EXHAUST ENGINE - See Figure(s) 02-003-00 01

1шт.

16

ENGINE - See Figure(s) 02-001-00 01, And 02-006-01 01 - 02-155-01 01

1шт.

17

RADIATOR, WATER CIRCUIT - See Figure(s) 02-004-00 01 - 02-004-04 01

1шт.

18

AIR FILTRATION - See Figure(s) 02-002-00 01

1шт.

19

BATTERIES, ELECTRICAL SYSTEM - See Figure(s) 04-001-00 01 - 04-826-01 01

1шт.

20

CONTROL VALVE - See Figure(s) 08-200-00 01 - 08-207-00 01

1шт.

21

UNDERCARRIAGE LC, HYDRAULIC CIRCUIT- See Figure(s) 05-001-00 01, 07-001-00 01

1шт.

21

UNDERCARRIAGE RETRACTABLE , HYDRAULIC CIRCUIT - See Figure(s) 05-001-01 01, 07-001-01 01

1шт.

22

TRACK FOOT STEP For UNDERCARRIAGE LC - See Figure(s) 05-006-00 01, 05-007-00 01, 05-008-00 01

1шт.

23

GUIDE, CHAIN - See Figure(s) 05-011-01 01, 05-011-01 01

1шт.

24

TRAVEL MOTOR AND REDUCTIONGEAR - See Figure(s) 06-001-00 01, 06-010-00 01, 07-011-00 01, 07-012-00 01

1шт.

25

ROLLER LOWER - See Figure(s) 05-003-00 01

1шт.

26

ROLLER UPPER For UNDERCARRIAGE LC - See Figure(s) 05-002-00 01

1шт.

26

ROLLER UPPER For UNDERCARRIAGE RETRACTABLE - See Figure(s) 05-002-01 01

1шт.

27

GUIDE PULLEY - See Figure(s) 05-004-00 01

1шт.

28

SWING MOTOR-DRIVE REDUCTION GEAR - See Figure(s) 06-002-00 01, 08-220-00 01

1шт.

29

TENSION DAMPER - See Figure(s) 05-005-00 01

1шт.

30

SWING COMPONENTS, LUBRICATION CIRCUIT - See Figure(s) 09-001-00 01

1шт.

31

OPERATORS COMPARTMENT, CAB - See Figure(s) 04-011-00 01,04-012-00 01, And 09-029-00 01 - 09-036-00 01

1шт.

32

OPERATORS COMPARTMENT, LEVER, CONTROL - See Figure(s) 09-0017-00 01

1шт.

33

OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING - See Figure(s) 09-010-00 01 - 09-023-00 01

1шт.

34

CAB AIR CONDITIONING - See Figure(s) 09-025-00 01 - 09-026-00 01

1шт.

35

SIDE INSTRUMENT PANEL - See Figure(s) 09-029-00 01, 09-029-01 01

1шт.
