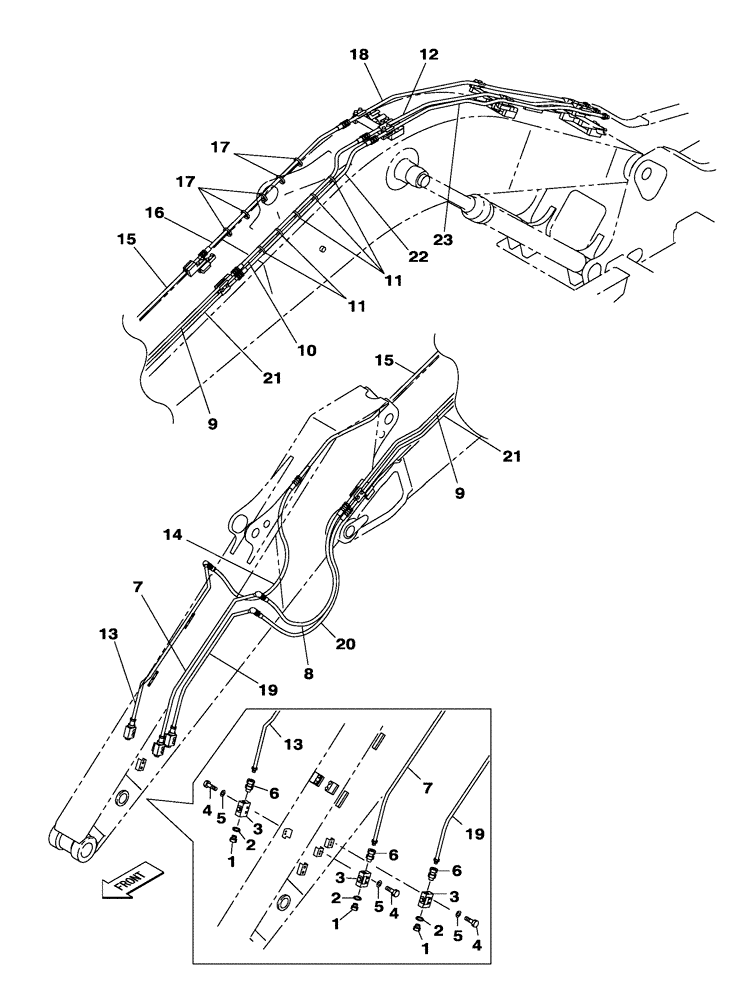

Запчасти Case CX470C (08-025-01[01]) - HYDRAULIC CIRCUIT - LOW FLOW - MONOBLOCK BOOM - DIPPER - 3.38 M (07) - HYDRAULIC SYSTEM

1

152924A1

PLUG

3шт.

Include(s) 2

1шт.

2

154503A1

O-RING

1шт.

3

KHV10710

VALVE

3шт.

See Figure(s) 08-254-00 01

1шт.

4

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

6шт.

5

150811A1

WASHER

6шт.

6

167248A1

FITTING

3шт.

7

KTV13150

HYD TUBE,27.20mm OD x 1492.10mm L

1шт.

8

KTV13190

HYDRAULIC HOSE,19.00 mm ID x 170.00 mm

2шт.

9

KTV14640

HYD TUBE,27.20mm OD x 2649mm L

L

1шт.

10

KTV15510

HYDRAULIC HOSE,2000.00 mm

1шт.

11

150071A1

MOUNTING CLIP

380 mm

5шт.

12

KTV15530

HYD TUBE,27.20mm OD x 3041.20mm L

L

1шт.

13

KTV13140

HYD TUBE,27.20mm OD x 1492.10mm L

1шт.

14

KTV13190

HYDRAULIC HOSE,19.00 mm ID x 170.00 mm

1шт.

15

KTV14630

HYD TUBE,27.20mm OD x 2634.70mm L

R

1шт.

16

KTV15510

HYDRAULIC HOSE,2000.00 mm

1шт.

17

150071A1

MOUNTING CLIP

380 mm

5шт.

18

KTV15520

HYD TUBE,27.20mm OD x 3018.50mm L

R

1шт.

19

KTV13160

HYD TUBE,27.20mm OD x 1237.80mm L

1шт.

20

KTV13190

HYDRAULIC HOSE,19.00 mm ID x 170.00 mm

1шт.

21

KTV14640

HYD TUBE,27.20mm OD x 2649mm L

L

1шт.

22

KTV15510

HYDRAULIC HOSE,2000.00 mm

1шт.

23

KTV15540

HYD TUBE,27.20mm OD x 3014mm L

L

1шт.
