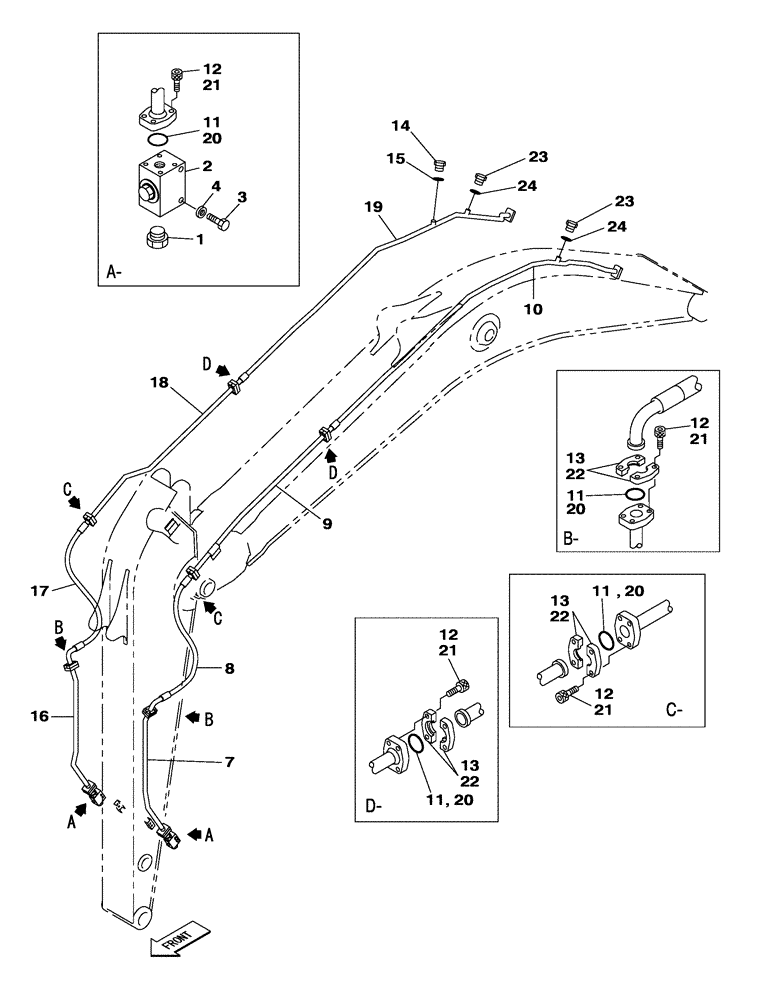

Запчасти Case CX470C (08-024-00[01]) - HYDRAULIC CIRCUIT - MONOBLOCK BOOM - DIPPER - 2.53 M - OPTIONAL (07) - HYDRAULIC SYSTEM

1

162335A1

PLUG

2шт.

2

KHV12250

SHUT-OFF VALVE

2шт.

See Figure(s) 08-273-00 01

1шт.

3

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

4

150811A1

WASHER

4шт.

7

KTV14591

HYD TUBE,42.70mm OD x 700.50mm L

L

1шт.

8

KWV11490

HYDRAULIC HOSE

1шт.

9

KTV15010

HYD TUBE,42.70mm OD x 2064.40mm L

L

1шт.

10

KTV13030

HYD TUBE,42.70mm OD x 3397.40mm L

L

1шт.

11

164450A1

O-RING

4шт.

12

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

16шт.

13

150124A1

FLANGE

6шт.

14

152924A1

PLUG

1шт.

Include(s) 15

1шт.

15

154503A1

O-RING

1шт.

16

KTV14581

HYD TUBE,42.70mm OD x 700.50mm L

R

1шт.

17

KWV11490

HYDRAULIC HOSE

1шт.

18

KTV15000

HYD TUBE,42.70mm OD x 2064.40mm L

R

1шт.

19

KTV13020

HYD TUBE,42.70mm OD x 3397.40mm L

R

1шт.

20

164450A1

O-RING

4шт.

21

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

16шт.

22

150124A1

FLANGE

6шт.

23

152924A1

PLUG

2шт.

Include(s) 24

1шт.

24

154503A1

O-RING

1шт.
