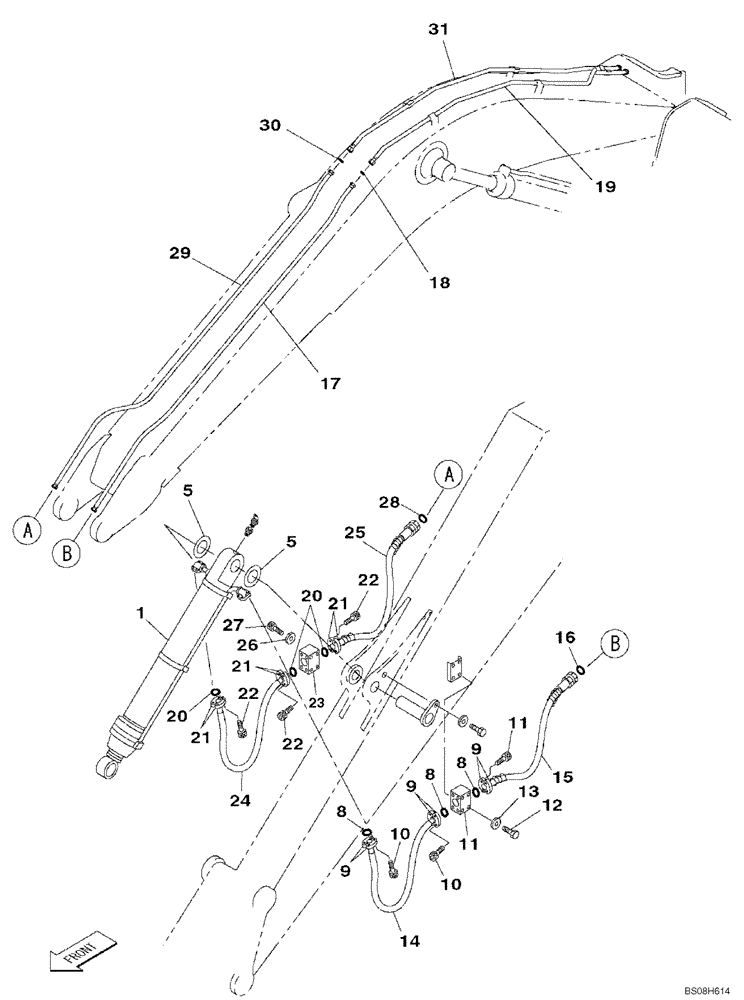

Запчасти Case CX470C (08-023-00[01]) - HYDRAULIC CIRCUIT - BUCKET CYLINDER - DIPPER - 4.85 M (07) - HYDRAULIC SYSTEM

1

KTV10720

BUCKET CYLINDER

Bucket; Incl. 3; Also Includes Parts on Figure 08-98

1шт.

1

KTV10720R

REMAN-HYD CYLINDER

Reman For New P/N KTV10720

1шт.

1

KTV10720C

CORE-HYD CYLINDER

Return Number

1шт.

5

151443A1

SHIM,111mm ID x 190mm OD x 1.2mm Thk

2шт.

8

155211A1

O-RING

3шт.

9

153459A1

FLANGE

6шт.

10

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

12шт.

11

KSV1133

MANIFOLD VALVE

1шт.

12

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

13

150811A1

WASHER

4шт.

14

KSV1191

HYDRAULIC HOSE,25.40 mm ID x 1400.00 mm

1шт.

15

KTV15380

HYDRAULIC HOSE,2050.00 mm

1шт.

16

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

17

KTV14980Y2

HYD TUBE

1шт.

18

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

19

KTV14960Y2

HYD TUBE

1шт.

20

155211A1

O-RING

3шт.

21

153459A1

FLANGE

6шт.

22

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

12шт.

23

KSV1133

MANIFOLD VALVE

1шт.

24

KSV1191

HYDRAULIC HOSE,25.40 mm ID x 1400.00 mm

1шт.

25

KTV15380

HYDRAULIC HOSE,2050.00 mm

1шт.

26

150811A1

WASHER

4шт.

27

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

28

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

29

KTV14990Y2

HYD TUBE

1шт.

30

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

31

KTV14970Y2

HYD TUBE

1шт.
