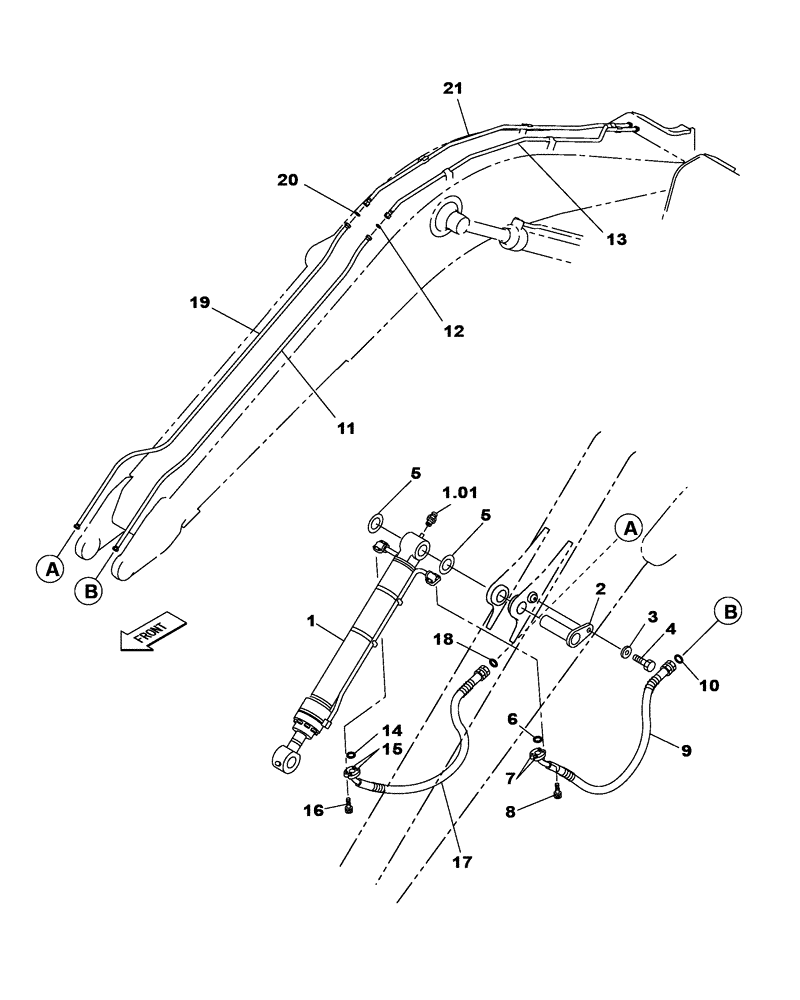

Запчасти Case CX470C (08-020-00[01]) - HYDRAULIC CIRCUIT - BUCKET CYLINDER - DIPPER - 3.38 M (07) - HYDRAULIC SYSTEM

1

KTV10720

BUCKET CYLINDER

1шт.

See Figure(s) 08-303-00 01

1шт.

1

KTV10720R

REMAN-HYD CYLINDER

Reman For New P/N KTV10720

1шт.

1

KTV10720C

CORE-HYD CYLINDER

Return Number

1шт.

1.01

M01X0813

NIPPLE, LUBE

NIPPLE

1шт.

2

KTV1276

PIN

1шт.

3

KTV1185

SPACER

1шт.

4

102R020Y035R

BOLT

1шт.

5

151443A1

SHIM,111mm ID x 190mm OD x 1.2mm Thk

2шт.

6

155211A1

O-RING

1шт.

7

153459A1

FLANGE

2шт.

8

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

4шт.

9

KSV1810

HYDRAULIC HOSE,25.40 mm ID x 1750.00 mm

1шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

11

KTV14980Y2

HYD TUBE

1шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

13

KTV14960Y2

HYD TUBE

1шт.

14

155211A1

O-RING

1шт.

15

153459A1

FLANGE

2шт.

16

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

4шт.

17

KSV1810

HYDRAULIC HOSE,25.40 mm ID x 1750.00 mm

1шт.

18

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

19

KTV14990Y2

HYD TUBE

1шт.

20

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

21

KTV14970Y2

HYD TUBE

1шт.
