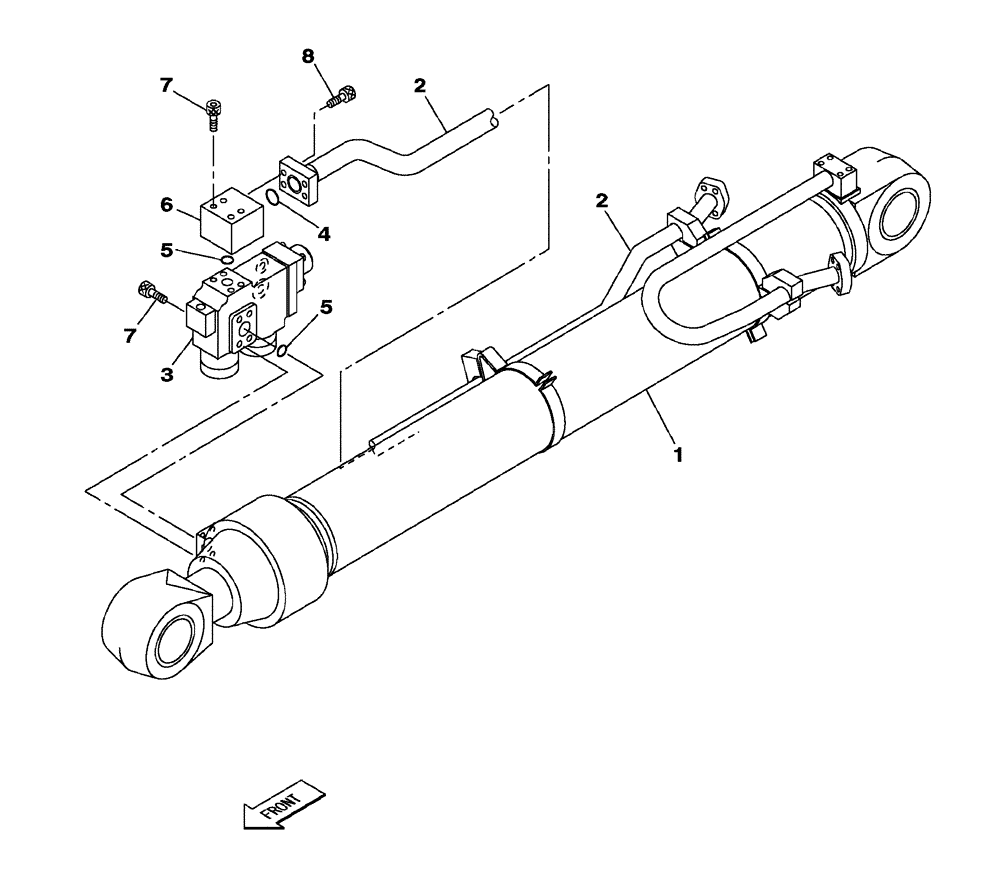

Запчасти Case CX470C (08-017-03[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - WITH SAFETY VALVE (07) - HYDRAULIC SYSTEM

1

KTV12741

HYDRAULIC CYLINDER

1шт.

See Figure(s) 08-302-01 01

1шт.

1

KTV12741R

REMAN-HYD CYLINDER

CX470C CRAWLER EXCAVATOR - TIER 4 (NA) (9/11-)

1шт.

1

KTV12741C

CORE-HYD CYLINDER

Return Number

1шт.

2

KTV1411

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

3

KTV1316

VALVE

1шт.

See Figure(s) 08-401-00 01

1шт.

4

164450A1

O-RING

1шт.

5

168211A1

O-RING

2шт.

6

KSV1606

MANIFOLD

1шт.

7

162030A1

BOLT,Hex Skt Hd

8шт.

8

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

1шт.
