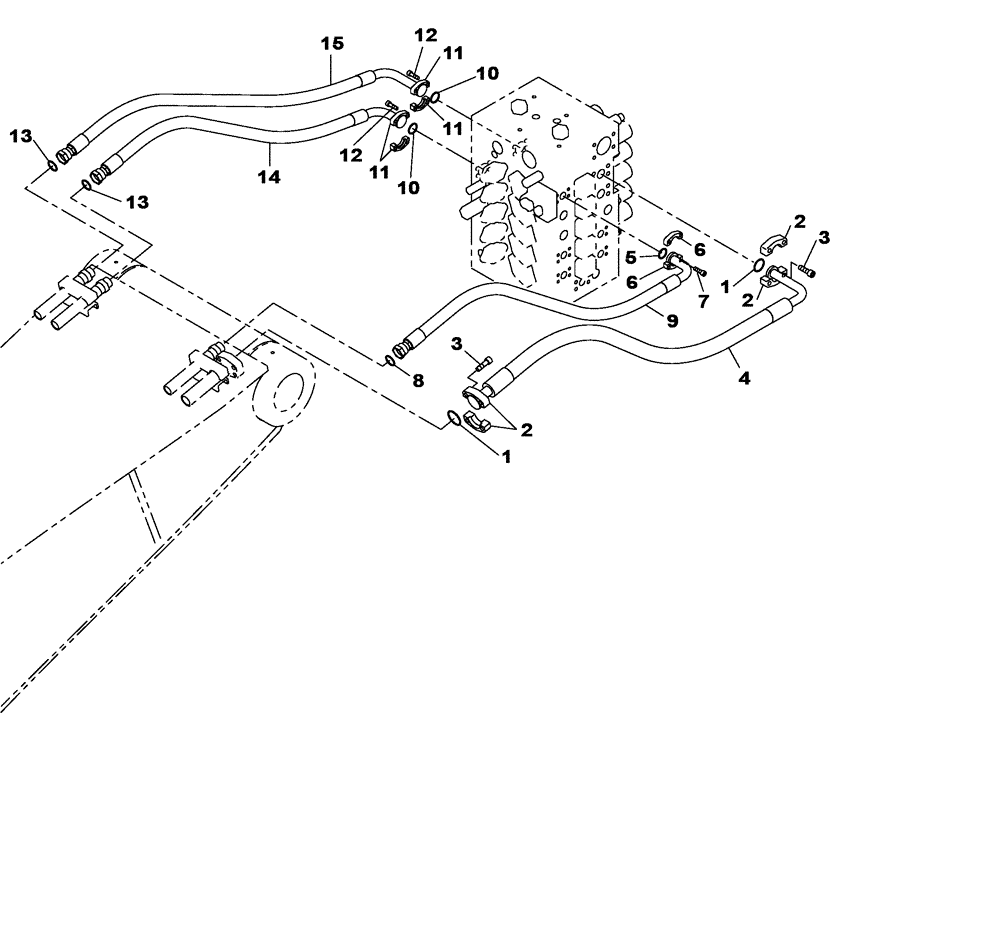

Запчасти Case CX470C (08-016-00[01]) - HYDRAULIC CIRCUIT - DIPPER AND BUCKET CYLINDER (07) - HYDRAULIC SYSTEM

1

164450A1

O-RING

2шт.

2

150124A1

FLANGE

4шт.

3

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

8шт.

4

KTJ12100

HYDRAULIC HOSE

1650 mm

1шт.

5

155211A1

O-RING

1шт.

6

153459A1

FLANGE

2шт.

7

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

8

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

9

KTJ13480

HYDRAULIC HOSE

1450 mm

1шт.

10

155211A1

O-RING

2шт.

11

153459A1

FLANGE

4шт.

12

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

14

KTJ13480

HYDRAULIC HOSE

1540 mm

1шт.

15

KTJ13490

HYDRAULIC HOSE

1600 mm

1шт.
