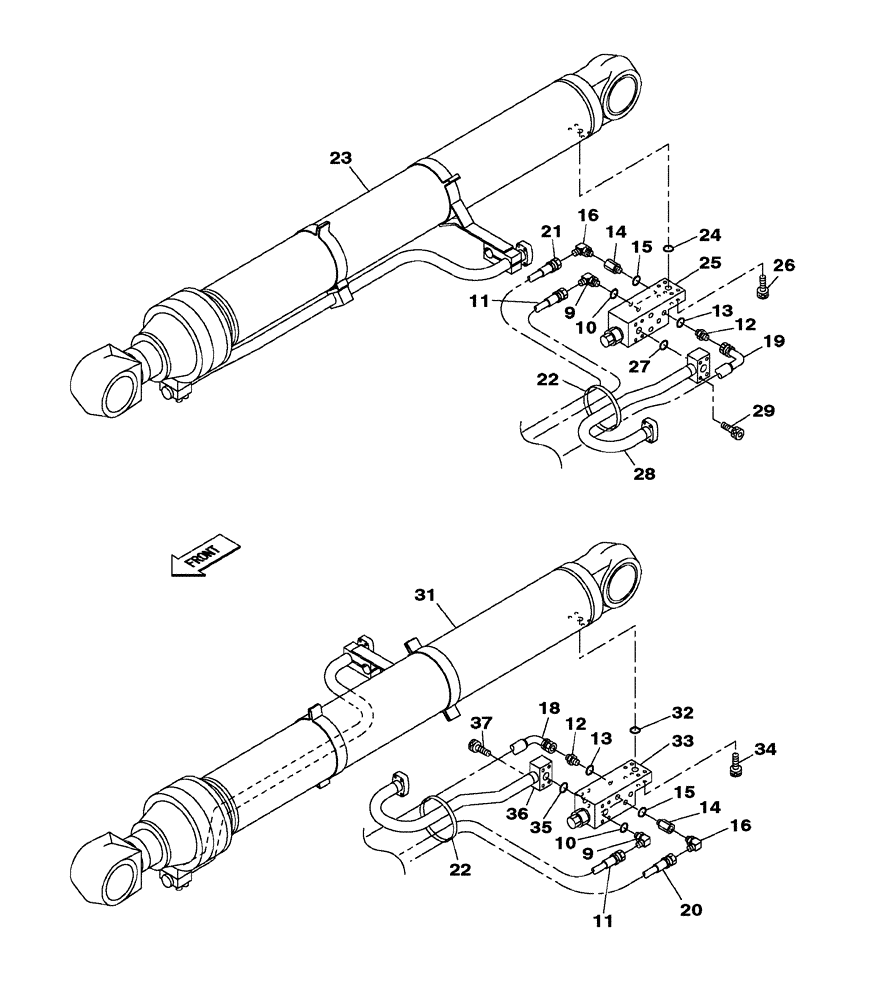

Запчасти Case CX470C (08-015-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER - WITH SAFETY VALVE - MONOBLOCK BOOM (07) - HYDRAULIC SYSTEM

9

153559A1

ELBOW

2шт.

Include(s) 10

1шт.

10

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KTV15450

HYDRAULIC HOSE,2000.00 mm

1шт.

12

152747A1

ADAPTER

2шт.

Include(s) 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

KHJ1584

UNION

2шт.

Include(s) 15

1шт.

15

154487A1

O-RING

1шт.

16

157937A1

ELBOW

2шт.

18

KHJ19100

HYDRAULIC HOSE

2300 mm

1шт.

19

KHJ19100

HYDRAULIC HOSE

2300 mm

1шт.

20

KHJ19060

HYDRAULIC HOSE

2300 mm

1шт.

21

KHJ19060

HYDRAULIC HOSE

2300 mm

1шт.

22

150071A1

MOUNTING CLIP

380 mm

2шт.

23

KTV11431

HYDRAULIC CYLINDER

1шт.

See Figure(s) 08-300-01 01

1шт.

23

KTV11431R

REMAN-HYD CYLINDER

CX470C CRAWLER EXCAVATOR, TIER 4 (NA), BOOM CYLINDER, WITH SAFETY VALVE, MONOBLOCK BOOM (9/11-)

1шт.

23

KTV11431C

CORE-HYD CYLINDER

Return Number

1шт.

24

155211A1

O-RING

1шт.

25

KTV13680

VALVE SECTION

1шт.

26

862-12055

HEX SOC SCREW,M12 x 55mm, Cl 12.9

4шт.

27

155211A1

O-RING

1шт.

28

KTV13740

HYD TUBE

1шт.

29

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

4шт.

31

KTV11441

HYDRAULIC CYLINDER

1шт.

See Figure(s) 08-301-01 01

1шт.

31

KTV11441R

REMAN-HYD CYLINDER

CX470C CRAWLER EXCAVATOR, TIER 4 (NA), BOOM CYLINDER, WITH SAFETY VALVE, MONOBLOCK BOOM (9/11-)

1шт.

31

KTV11441C

CORE-HYD CYLINDER

Return Number

1шт.

32

155211A1

O-RING

1шт.

33

KTV13680

VALVE SECTION

1шт.

34

862-12055

HEX SOC SCREW,M12 x 55mm, Cl 12.9

4шт.

35

155211A1

O-RING

1шт.

36

KTV13750

HYD TUBE

1шт.

37

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

4шт.
