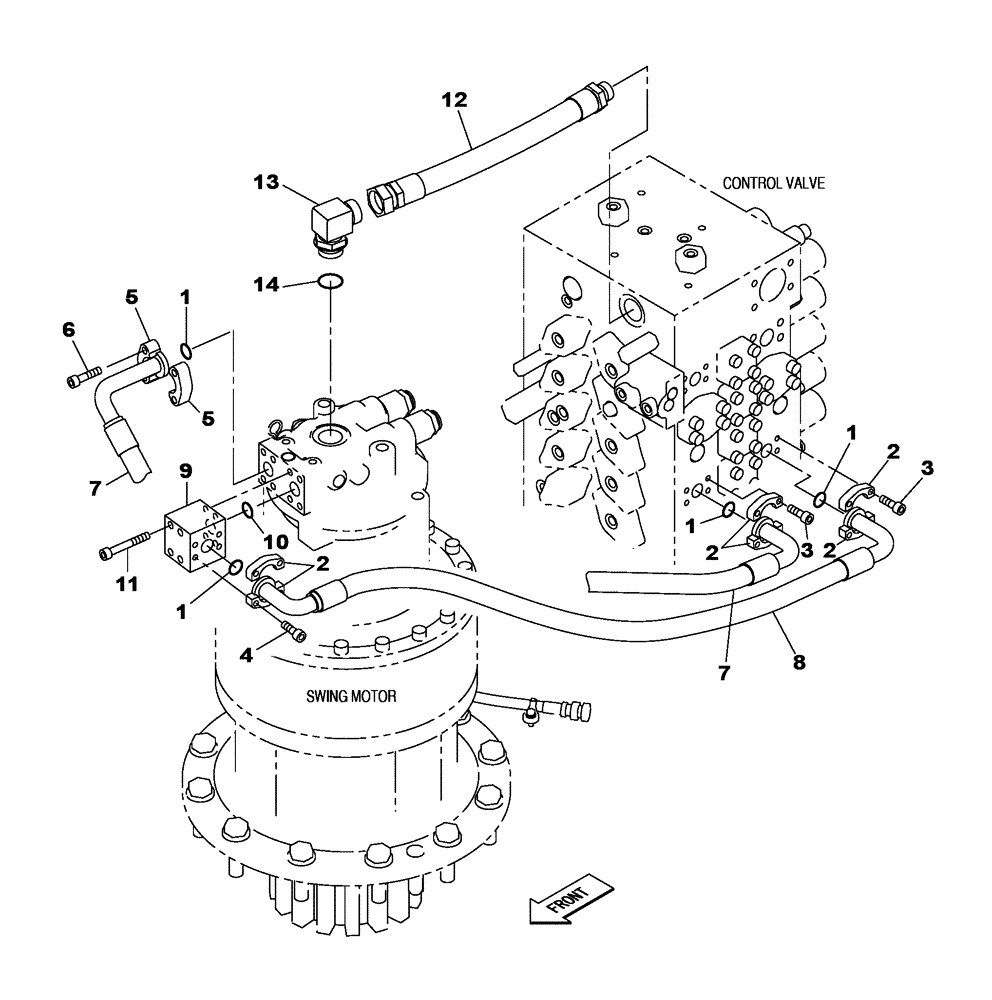

Запчасти Case CX470C (08-011-00[01]) - HYDRAULIC CIRCUIT - SWING MOTOR (07) - HYDRAULIC SYSTEM

1

155211A1

O-RING

4шт.

2

153459A1

FLANGE

6шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

150561A1

FLANGE

2шт.

6

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

4шт.

7

KTJ2203

HYDRAULIC HOSE,25.40 mm ID x 1200.00 mm

1шт.

8

KTJ2204

HYDRAULIC HOSE,25.40 mm ID x 950.00 mm

1шт.

9

KTJ2205

MANIFOLD

1шт.

10

155211A1

O-RING

1шт.

11

862-12090

HEX SOC SCREW,M12 x 90mm, Cl 12.9

4шт.

12

KTJ2069

HYDRAULIC HOSE,31.80 mm ID x 510.00 mm

1шт.

13

157582A1

ELBOW,90 Degree, 1 1/4" O-Ring x 1 1/4"

1шт.

Include(s) 14

1шт.

14

154559A1

O-RING

1шт.
