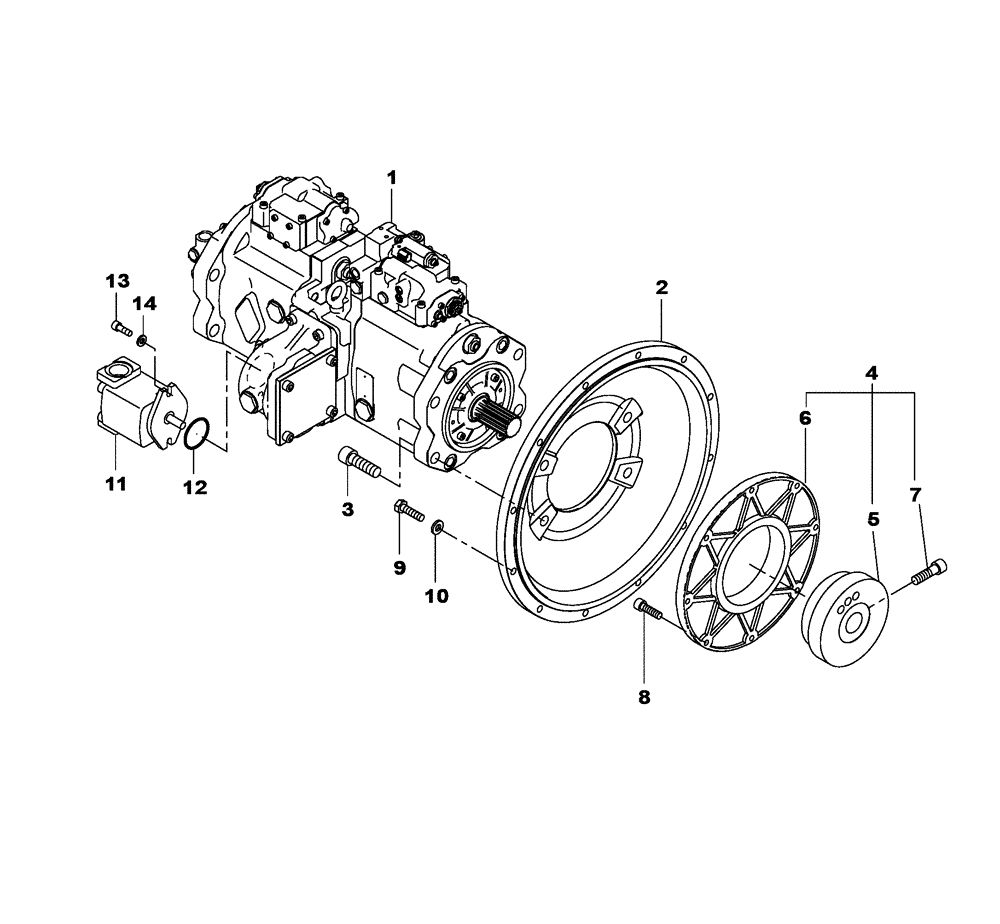

Запчасти Case CX470C (08-002-01[01]) - HYDRAULIC PUMP - COUPLING - OPTIONAL (07) - HYDRAULIC SYSTEM

1

KTJ13390

HYDRAULIC PUMP

1шт.

1

KTJ13390R

REMAN-HYD PUMP

CX470C CRAWLER EXCAVATOR - TIER 4 (NA), COUPLING - OPTIONAL (9/11-)

1шт.

1

KTJ13390C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

KTJ10290

FLANGE

1шт.

3

108R020Y065R

BOLT

4шт.

4

KTJ2232

COUPLING

1шт.

Include(s) 5 - 7

1шт.

5

KTJ2233

HUB

1шт.

6

KTJ2234

FLANGE

1шт.

7

KTJ2100

BOLT,Spcl

1шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

9шт.

10

150811A1

WASHER

9шт.

11

KRJ10300

HYDRAULIC PUMP

1шт.

See Figure(s) 08-120-00 01

1шт.

11

KRJ10300R

REMAN-HYD PUMP

CX470C CRAWLER EXCAVATOR - TIER 4 (NA) (9/11-)

1шт.

11

KRJ10300C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

154697A1

O-RING

1шт.

13

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

14

150409A1

WASHER

2шт.
