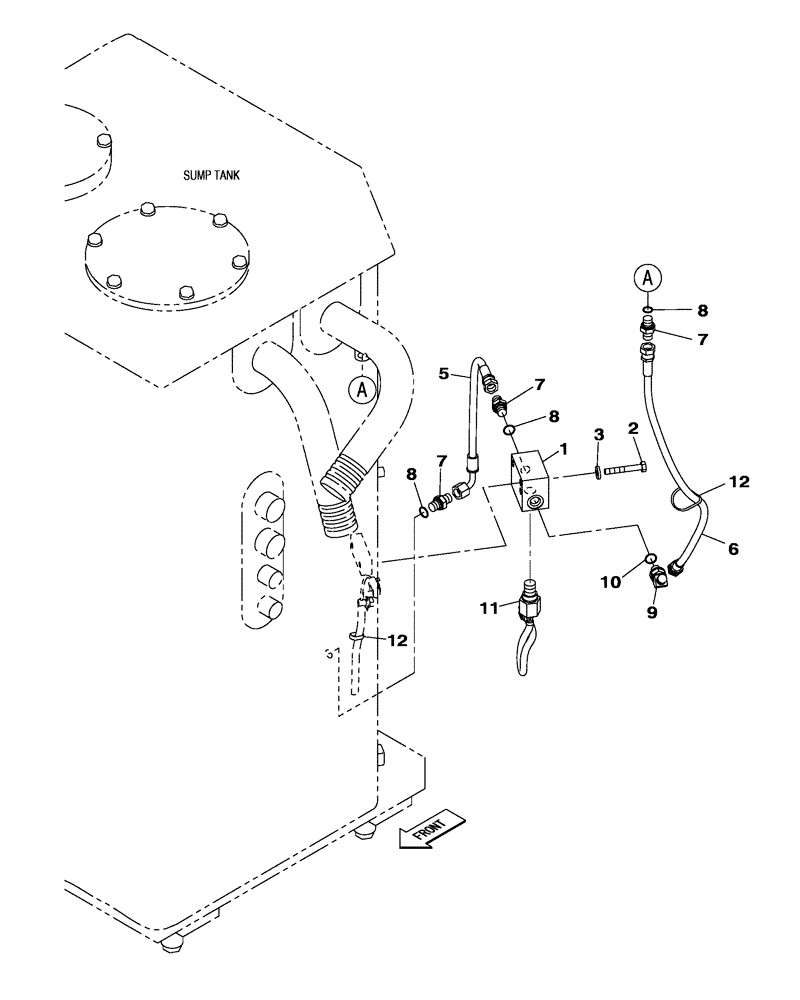

Запчасти Case CX470C (08-001-01[01]) - HYDRAULIC RESERVOIR - OPTIONAL (07) - HYDRAULIC SYSTEM

1

KHJ11730

MANIFOLD VALVE

1шт.

2

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

3

153081A1

WASHER

2шт.

5

KHJ2238

HOSE

320mm

1шт.

6

KHJ2047

HOSE

650mm

1шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

Include(s) 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

150933A1

ELBOW

1шт.

Include(s) 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KHR14470

PRESSURE SWITCH

, Serial Range: -NCEAS1108

1шт.

11

KHR32870

SENSOR

, Start Serial: NCEAS1109

1шт.

12

150496A1

MOUNTING CLIP

250mm

2шт.
