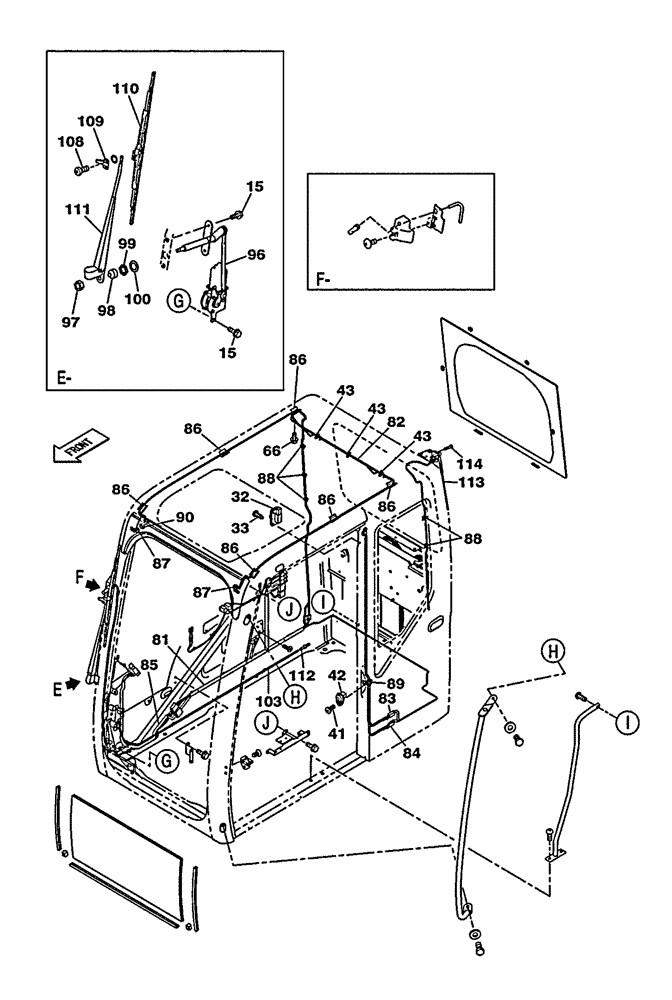

Запчасти Case CX470C (04-011-00[01]) - CAB - ELECTRICAL CIRCUIT (06) - ELECTRICAL SYSTEMS

15

KHN18880

BOLT

12шт.

32

KHN2714

COURTESY LIGHT

1шт.

33

KHN2687

SCREW,Spcl

2шт.

41

KHN2713

SCREW,Spcl

1шт.

42

KHR2950

LIMIT SWITCH

1шт.

43

KHN25940

COLLAR

4шт.

66

KHN18870

BOLT

20шт.

81

KHN25430

WIRE HARNESS

1шт.

82

KHN25440

WIRE HARNESS

1шт.

83

KHN25450

WIRE HARNESS

1шт.

84

KHN25460

WIRE HARNESS

1шт.

85

KHN25470

WIRE HARNESS

1шт.

86

KHN2712

FASTENER

6шт.

87

KHN25810

GROMMET

2шт.

88

KHN17180

MOUNTING CLIP

5шт.

89

KHN2709

GROMMET

1шт.

90

KHN25970

NUT

1шт.

96

KHN25780

WIPER MOTOR

1шт.

97

KHN2740

SPECIAL NUT

1шт.

98

KHN2739

CAP

1шт.

99

KHN2738

SPECIAL NUT

1шт.

100

KHN2737

WASHER

1шт.

103

KHN16050

TUBE

1шт.

108

KHN20170

SCREW,Spcl

1шт.

109

KHN20180

NIPPLE

1шт.

110

KHN16820

WINDSHIELD WIPER

1шт.

111

KHN16830

WIPER ARM

1шт.

112

KHN16100

RUBBER JOINT

1шт.

113

KHN25790

ANTENNA

1шт.

114

KHN16110

SCREW

2шт.
