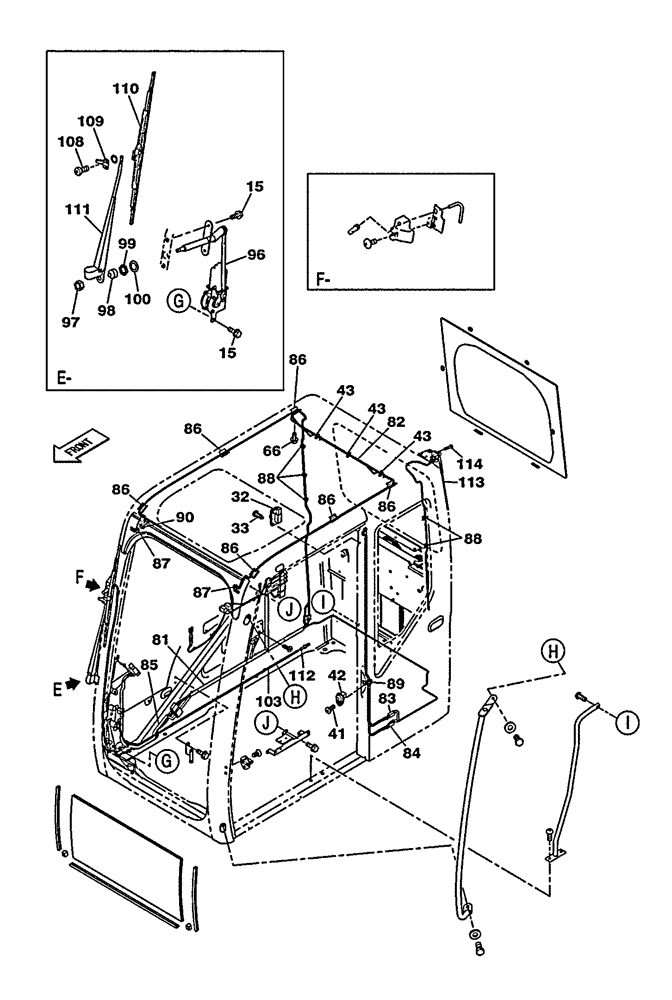

Запчасти Case CX350C (04-009[00]) - CAB - ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS
![Схема запчастей Case CX350C - (04-009[00]) - CAB - ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/193448.png)
86
96
88
90
43
89
113
15
86
43
85
15
100
112
109
82
87
111
33
97
66
103
41
110
83
88
86
87
108
32
81
84
86
86
42
99
86
98
43
114
15
KHN18880
BOLT
12шт.
32
KHN2714
COURTESY LIGHT
DOME LIGHT
1шт.
33
KHN2687
SCREW,Spcl
2шт.
41
KHN2713
SCREW,Spcl
1шт.
42
KHR2950
LIMIT SWITCH
1шт.
43
KHN25940
COLLAR
4шт.
66
KHN18870
BOLT
20шт.
81
KHN25430
WIRE HARNESS
1шт.
82
KHN25440
WIRE HARNESS
1шт.
83
KHN25450
WIRE HARNESS
1шт.
84
KHN25460
WIRE HARNESS
1шт.
85
KHN25470
WIRE HARNESS
1шт.
86
KHN2712
FASTENER
6шт.
87
KHN25810
GROMMET
2шт.
88
KHN17180
MOUNTING CLIP
5шт.
89
KHN2709
GROMMET
1шт.
90
KHN25970
NUT
1шт.
96
KHN25780
WIPER MOTOR
1шт.
97
KHN2740
SPECIAL NUT
1шт.
98
KHN2739
CAP
1шт.
99
KHN2738
SPECIAL NUT
1шт.
100
KHN2737
WASHER
1шт.
103
KHN16050
TUBE
1шт.
108
KHN20170
SCREW,Spcl
1шт.
109
KHN20180
NIPPLE
1шт.
110
KHN16820
WINDSHIELD WIPER
1шт.
111
KHN16830
WIPER ARM
1шт.
112
KHN16100
RUBBER JOINT
1шт.
113
KHN25790
ANTENNA
1шт.
114
KHN16110
SCREW
2шт.
