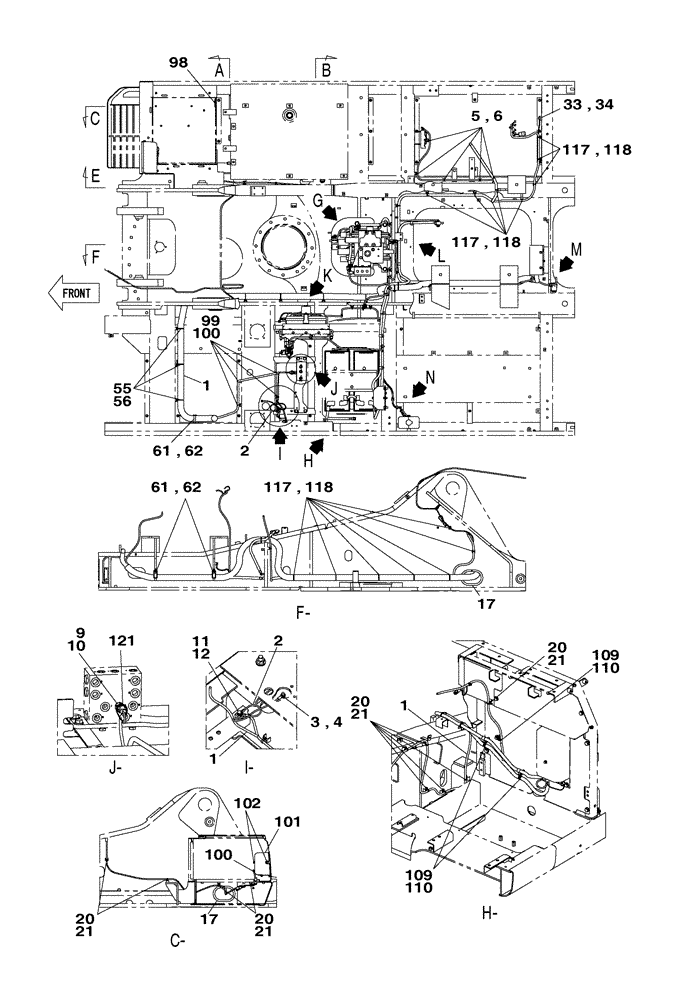

Запчасти Case CX350C (04-001[01]) - CHASSIS ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

KSR13401

WIRE HARNESS

1шт.

1

KSR13402

WIRE HARNESS

1шт.

2

KHR11090

GROUND CABLE

1шт.

3

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

4

167518A1

BOLT

1шт.

5

KHR10220

MOUNTING CLIP

5шт.

6

150496A1

MOUNTING CLIP

250 mm

5шт.

9

KHR26940

SENSOR

5MPA

1шт.

Include(s) 10

1шт.

10

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

12

167518A1

BOLT

M8 x 16

1шт.

17

KSR11640

SEAL PROTECTION

450 mm

2шт.

20

KHR10220

MOUNTING CLIP

18шт.

21

150496A1

MOUNTING CLIP

250 mm

18шт.

33

167518A1

BOLT

M8 x 16

1шт.

34

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

55

KHR10220

MOUNTING CLIP

9шт.

56

150496A1

MOUNTING CLIP

250 mm

12шт.

61

KHR2581

CLAMP

3шт.

62

KHJ1215

BOLT,Spcl

M8 x 25

3шт.

98

KHN2651

GROMMET

1шт.

99

KHR10220

MOUNTING CLIP

4шт.

100

150496A1

MOUNTING CLIP

250 mm

5шт.

101

KHR23270

BRACKET

1шт.

102

KHJ1215

BOLT,Spcl

M8 x 25

2шт.

109

KHR2584

CLAMP

3шт.

110

KHJ1215

BOLT,Spcl

3шт.

117

KHR10220

MOUNTING CLIP

15шт.

118

150496A1

MOUNTING CLIP

250 mm

18шт.

121

150496A1

MOUNTING CLIP

8шт.
