Запчасти Case CX350C (02-011[00]) - PISTONS AND CRANKSHAFT (02) - ENGINE

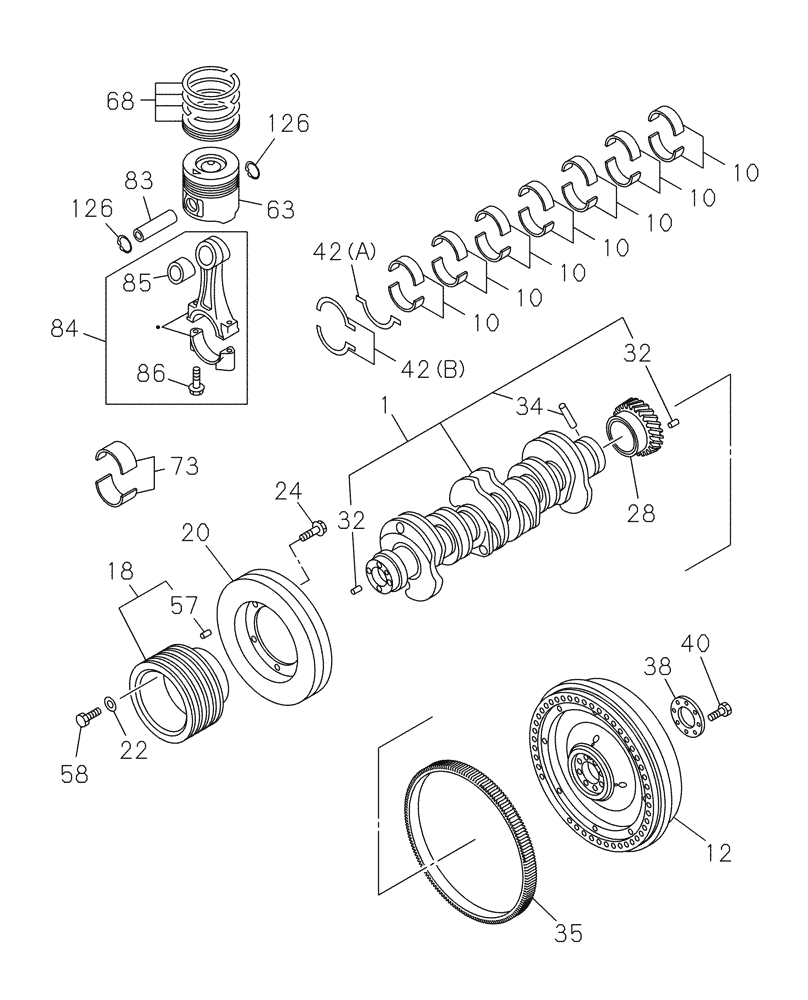

![Схема запчастей Case CX350C - (02-011[00]) - PISTONS AND CRANKSHAFT (02) - ENGINE](https://partsell.ru/storage/images/casece/16783.png)
28
40
38
10
42 a
12
73
10
22
1
24
85
126
32
84
10
83
126
35
10
18
68
20
10
10
32
57
10
58
63
84
42 b
86
34
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
10
87379566
SET OF STD MAIN BRGS,Half Round, 87mm OD x 27.2mm W x 2.522-2.526mm Thk
7шт.
10
87379569
SET OF STD MAIN BRGS,Half Round, 87mm OD x 27.2mm W x 2.518-2.522mm Thk
7шт.
10
87379572
SET OF STD MAIN BRGS,Half Round, 87mm OD x 27.2mm W x 2.514-2.518mm Thk
7шт.
Выбрано товаров: 0
