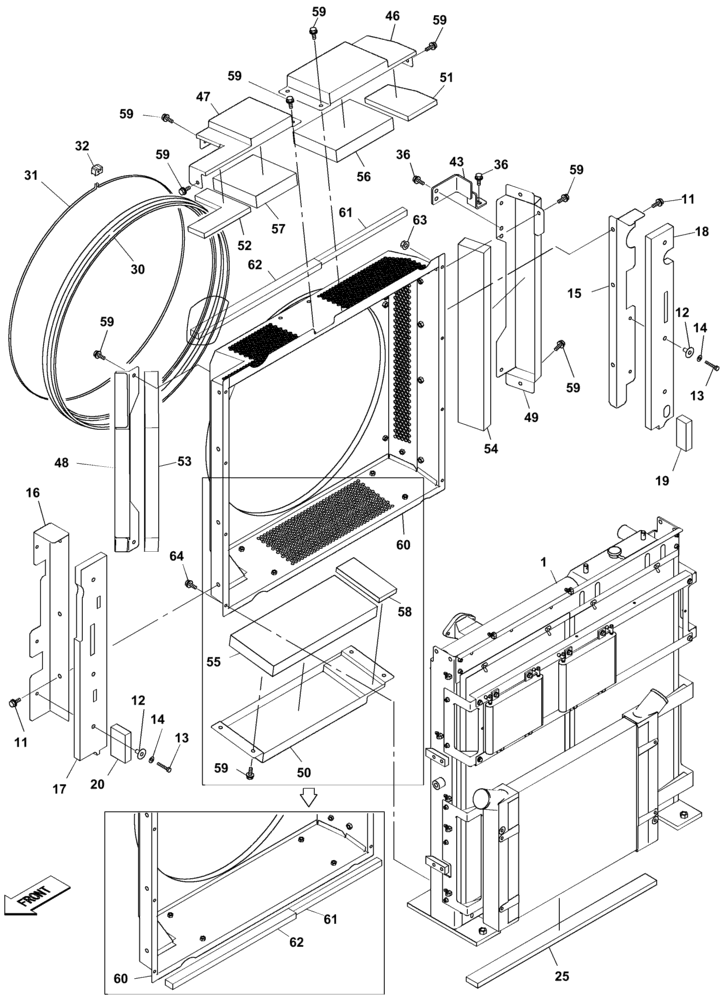

Запчасти Case CX350C (02-004[03]) - ENGINE WATER CIRCUIT (02) - ENGINE

1

KSH11631

RADIATOR

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

12

KHH0358

RETAINER

6шт.

13

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

6шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

15

KSH11891

BRACKET, SUPPORTING

1шт.

16

KSH11900

BRACKET, SUPPORTING

1шт.

17

KSH11880

SEAL

1шт.

18

KSH11870

SEAL

1шт.

19

KSH11910

SEAL

1шт.

20

KSH11920

SEAL

1шт.

25

KSH1050

SEAL

1шт.

30

KTH0632

FIXING STRIP

1шт.

31

KHH12400

MOUNTING CLIP

1шт.

32

KHH12410

COLLAR CLAMP

1шт.

36

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

43

KSH11981

BRACKET, SUPPORTING

1шт.

46

KSH11991

COVER

1шт.

47

KSH12001

COVER

1шт.

48

KSH12010

COVER

1шт.

49

KSH12020

COVER

1шт.

50

KSH12030

COVER

Not used

1шт.

51

KSH12041

INSULATOR

1шт.

52

KSH12051

INSULATOR

1шт.

53

KSH12060

INSULATOR

1шт.

54

KSH12070

INSULATOR

1шт.

55

KSH12080

INSULATOR

1шт.

56

KSH12091

INSULATOR

1шт.

57

KSH12101

INSULATOR

1шт.

58

KSH12130

INSULATOR

Not used

1шт.

59

166346A1

BOLT,Sems, M10

17шт.

60

KSH12152

GUIDE

1шт.

61

KSH12160

SEAL PROTECTION

2шт.

62

KSH12170

SEAL PROTECTION

2шт.

63

150469A1

FLANGE NUT

2шт.

64

166350A1

BOLT

6шт.
