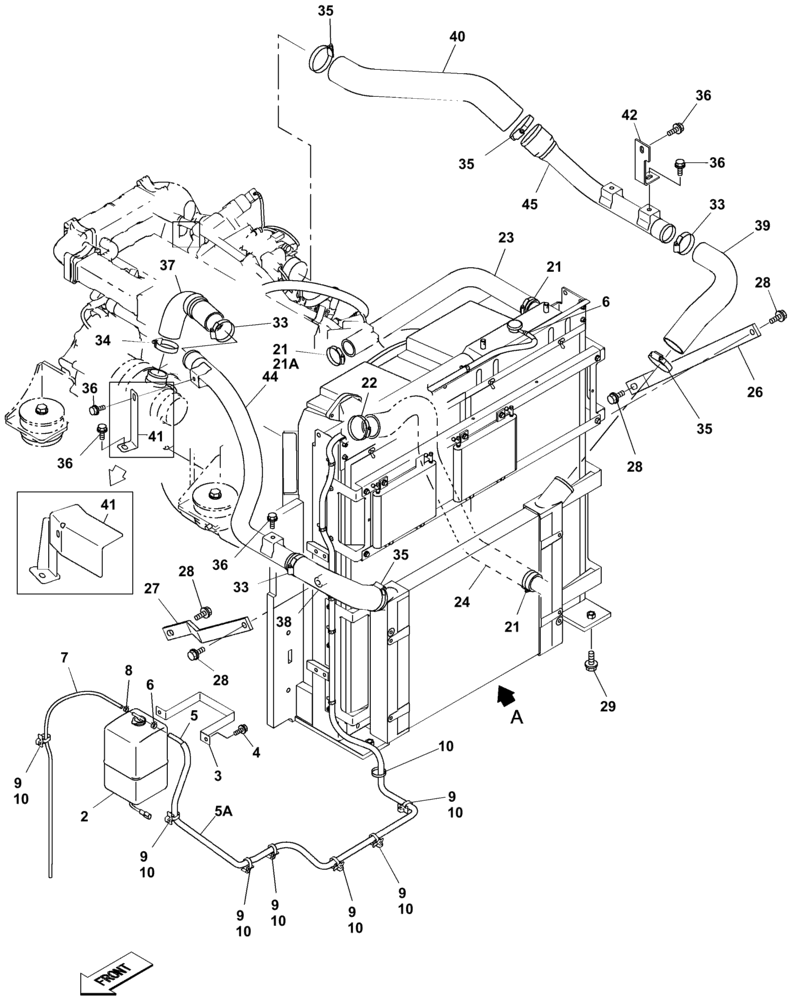

Запчасти Case CX350C (02-004[02]) - ENGINE WATER CIRCUIT (02) - ENGINE

2

KHH10850

RESERVOIR, COOLANT E

1шт.

3

167542A1

HOLDER

1шт.

4

166351A1

BOLT,Sems, M10 x 20mm

2шт.

5

KHH14430

HOSE

L= 1000 mm.

5шт.

5a

KHR21040

PLASTIC-RUBBER TUBE

1шт.

6

165951A1

CLAMP

2шт.

7

150068A1

HOSE

L= 1000 mm.

1шт.

8

165952A1

MOUNTING CLIP

1шт.

9

KHR10220

MOUNTING CLIP

7шт.

10

150496A1

MOUNTING CLIP

L= 250 mm.

8шт.

21

165794A1

COLLAR

, Serial Range: -NBSAP1292

3шт.

21

165794A1

COLLAR

, Start Serial: NBSAP1293

2шт.

21a

164967A1

COLLAR

, Start Serial: NBSAP1293

1шт.

22

165795A1

COLLAR

1шт.

23

KSH11580

RADIATOR HOSE

1шт.

24

KSH11590

RADIATOR HOSE

1шт.

26

KSH11930

STAY

1шт.

27

KSH11940

STAY

1шт.

28

166373A1

BOLT,Sems, M16 x 40mm

4шт.

29

166348A1

BOLT

4шт.

33

164967A1

COLLAR

3шт.

34

164968A1

COLLAR

1шт.

35

KHH0411

COLLAR

4шт.

36

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

37

KSH1031

RADIATOR HOSE

, Serial Range: -NBSAP1106

1шт.

37

KSH12120

RADIATOR HOSE

, Start Serial: NBSAP1107

1шт.

38

KSH11950

LARGE HOSE

1шт.

39

KSH11960

LARGE HOSE

1шт.

40

KSH10690

LARGE HOSE

1шт.

41

KSH12210

BRACKET, SUPPORTING

1шт.

42

KSH11020

BRACKET, SUPPORTING

1шт.

44

KSH12110

LARGE HOSE

1шт.

45

KSH10680

LARGE HOSE

1шт.
