/ / / / / / / / (09-033[00]) - MONOBLOCK BOOM - 6.45 M - BRACKET

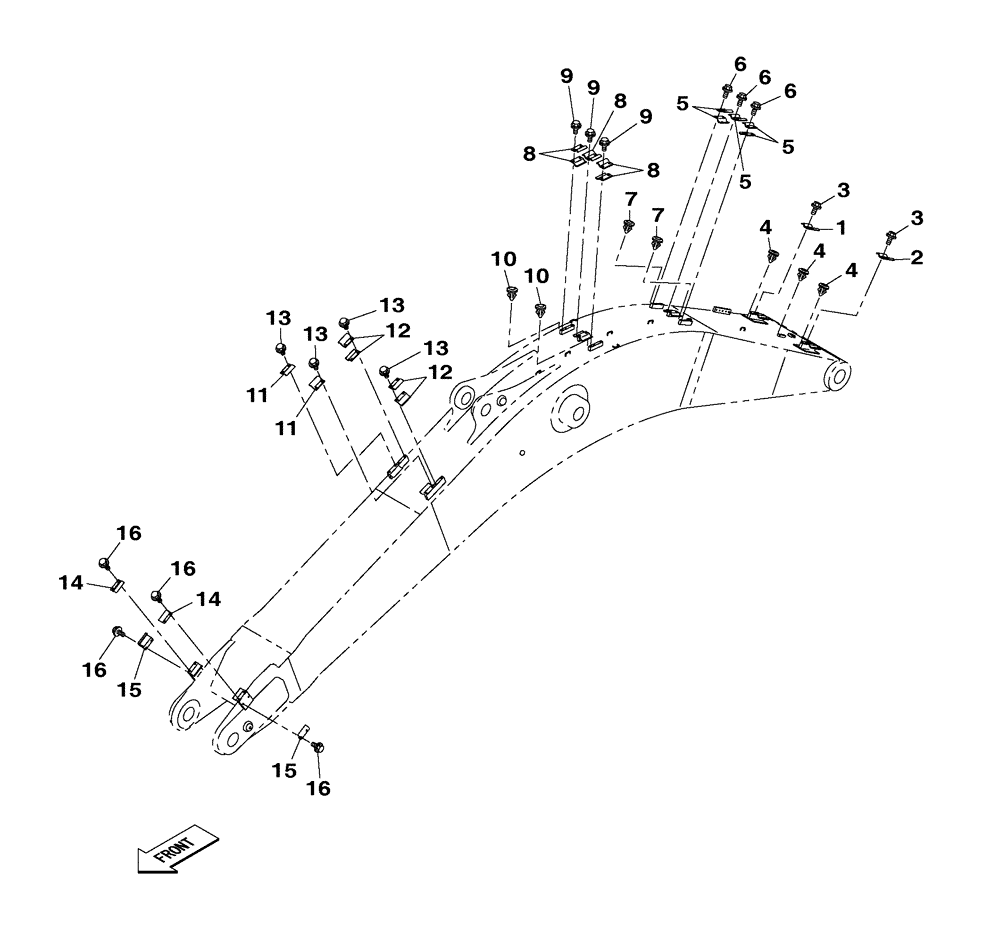

Запчасти Case CX350C (09-033[00]) - MONOBLOCK BOOM - 6.45 M - BRACKET (09) - CHASSIS/ATTACHMENTS
![Схема запчастей Case CX350C - (09-033[00]) - MONOBLOCK BOOM - 6.45 M - BRACKET (09) - CHASSIS/ATTACHMENTS](https://partsell.ru/storage/images/casece/659141.png)
13
9
8
16
9
13
3
15
9
13
12
6
6
4
12
7
8
15
14
11
10
7
5
1
10
13
3
16
16
5
11
4
4
2
14
6
5
8
16
1
KHV11020
COLLAR CLAMP
1шт.
2
KHV11200
PIPE CLAMP
1шт.
3
166352A1
BOLT
M12 x 30
4шт.
4
KHV12270
SCREW,M12 x 1
6шт.
5
KHV11200
PIPE CLAMP
5шт.
6
166352A1
BOLT
M12 x 30
6шт.
7
KHV12270
SCREW,M12 x 1
2шт.
8
KHV11200
PIPE CLAMP
5шт.
9
166352A1
BOLT
M12 x 30
6шт.
10
KHV12270
SCREW,M12 x 1
2шт.
11
KHV11190
COLLAR CLAMP
2шт.
12
KHV11060
COLLAR CLAMP
4шт.
13
166352A1
BOLT
M12 x 30
8шт.
14
KHV11190
COLLAR CLAMP
2шт.
15
KHV11070
COLLAR CLAMP
2шт.
16
166352A1
BOLT
M12 x 30
8шт.
