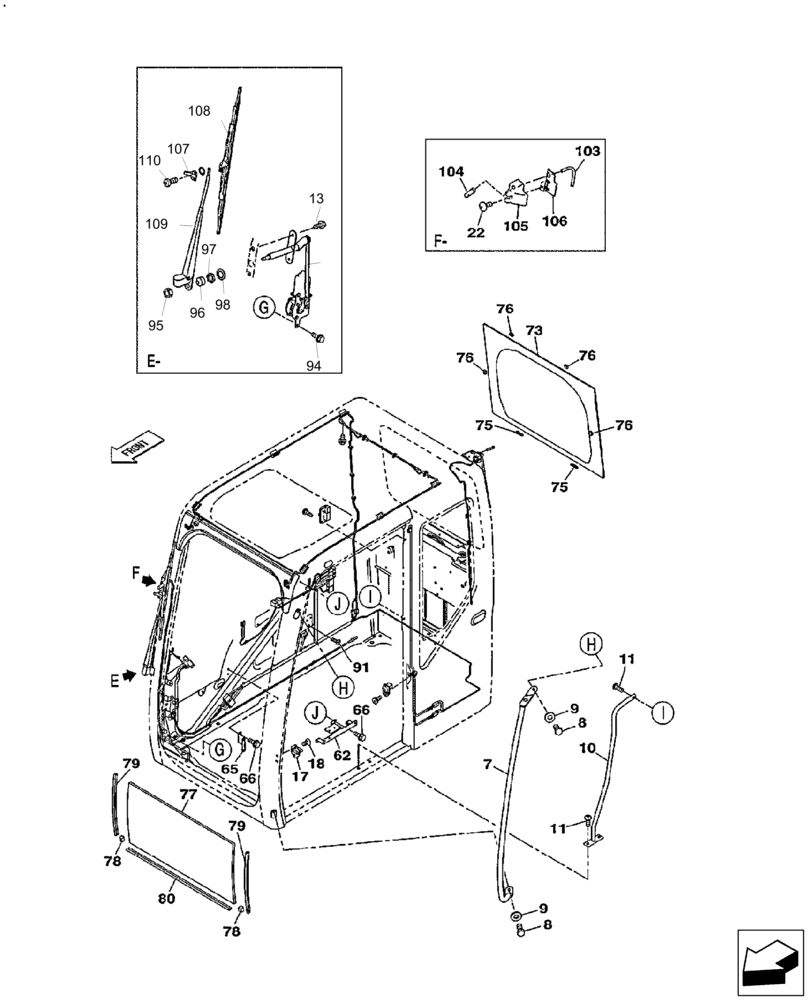

Запчасти Case CX350C (09-021[00]) - CAB - REAR WINDOW - HANDLE - WINDSHIELD WASHER (09) - CHASSIS/ATTACHMENTS

7

KHN14110

HANDRAIL

1шт.

8

KHN14120

BOLT,Spcl

2шт.

9

KHN14130

WASHER

2шт.

10

KHN14150

HANDRAIL

1шт.

11

KHN14160

BOLT,Spcl

3шт.

13

KHN18880

BOLT

12шт.

17

KHN14200

STOP

1шт.

18

KHN33980

SCREW

2шт.

22

KHN2682

SCREW,Spcl

7шт.

62

KHN25320

BRACKET, SUPPORTING

1шт.

65

KHN25360

BRACKET, SUPPORTING

1шт.

66

KHN18870

BOLT

20шт.

73

KHN25250

CAB GLASS

1шт.

75

KHN14980

SPACER

6шт.

76

KHN14990

SPACER

12шт.

77

KHN25610

CAB GLASS

1шт.

78

KHN25850

STOP

2шт.

79

KHN25820

SEAL, GLASS

2шт.

80

KHN15030

SEAL, GLASS

1шт.

91

KHN2719

SCREW,Spcl

1шт.

94

KHN25780

WIPER MOTOR

1шт.

95

KHN2740

SPECIAL NUT

1шт.

96

KHN2739

CAP

1шт.

97

KHN2738

SPECIAL NUT

1шт.

98

KHN2737

WASHER

1шт.

103

KHN16050

TUBE

1шт.

104

KHN2746

NOZZLE

1шт.

105

KHN25710

HOLDER

1шт.

106

KHN25720

PACKING

1шт.

107

KHN20180

NIPPLE

1шт.

108

KHN16820

WINDSHIELD WIPER

1шт.

109

KHN16830

WIPER ARM

1шт.

110

KHN20170

SCREW,Spcl

1шт.

111

KHN16090

WIPER ARM

Assy, Incl. 107-110

1шт.

Not illustrated

1шт.
