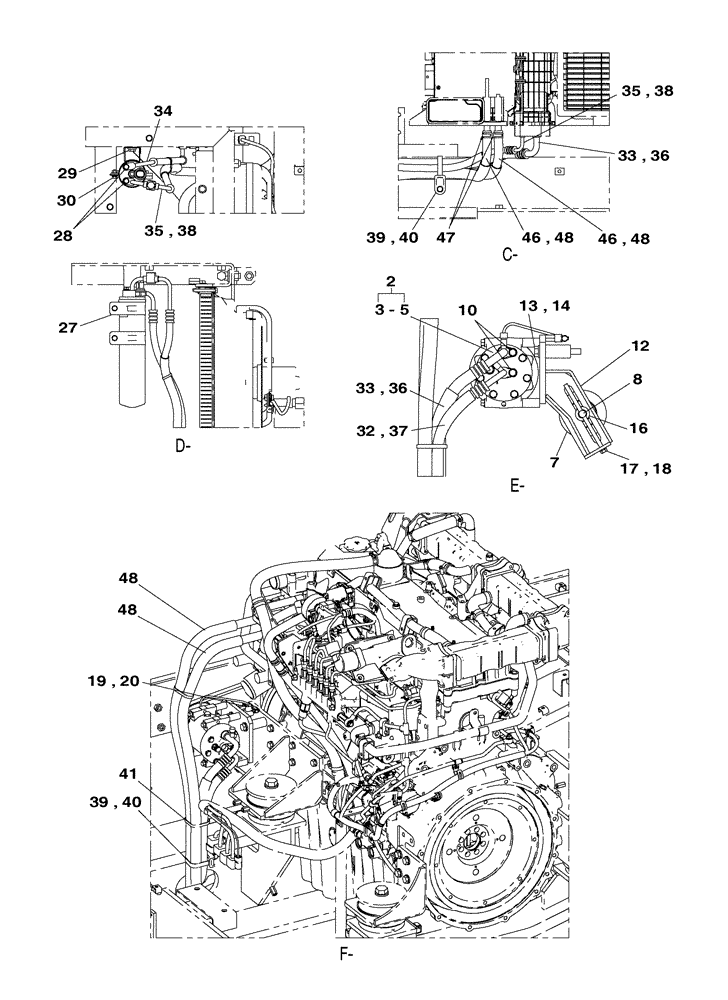

Запчасти Case CX350C (09-017[03]) - CAB AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

2

KHR3197

COMPRESSOR

1шт.

Include(s) 3 - 5

1шт.

KHR3197R

REMAN-COMPRESSOR

CX350C Tier 4

1шт.

KHR3197C

CORE-COMPRESSOR

Return Number

1шт.

3

KHR3198

CLUTCH

1шт.

4

KHR3974

PROTECTIVE COVER

1шт.

5

KHR3975

BOLT

3шт.

7

KHR11760

PULLEY

1шт.

8

157299A1

SHAFT

1шт.

10

162457A1

SPECIAL BOLT,Spcl

M8 x 25

2шт.

12

KSR12531

SUPPORT

1шт.

13

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

14

150811A1

WASHER

2шт.

16

151977A1

WASHER

2шт.

17

KHR3171

BOLT,Spcl

M8 x 160

1шт.

18

183-108VR

SPRING WASHER

1шт.

19

158962A1

CLIP

1шт.

20

167518A1

BOLT

M8 x 16

1шт.

27

KHR13600

BRACKET

1шт.

28

162043A1

BOLT,Spcl, M6

M6 x 28

2шт.

29

166350A1

BOLT

M8 x 20

2шт.

30

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6 x 16

2шт.

32

KHR25330

LARGE HOSE

HOSE,LARGE

1шт.

33

KHR25340

LARGE HOSE

HOSE,LARGE

1шт.

34

KHR25350

LARGE HOSE

HOSE,LARGE

1шт.

35

KHR25360

LARGE HOSE

HOSE,LARGE

1шт.

36

KBR0663

PLASTIC-RUBBER TUBE

3800 mm

1шт.

37

162635A1

TUBE

3300 mm

1шт.

38

150776A1

PLASTIC-RUBBER TUBE

2000 mm

1шт.

39

KHR2581

CLAMP

2шт.

40

KHJ1215

BOLT,Spcl

M8 x 25

2шт.

41

150071A1

MOUNTING CLIP

380 mm

1шт.

46

KHR25370

HOSE ASSY.

4600 mm

2шт.

47

KHH10750

COLLAR

4шт.

48

KBR0720

PLASTIC-RUBBER TUBE

4400 mm

2шт.

49

150071A1

MOUNTING CLIP

380 mm

2шт.
