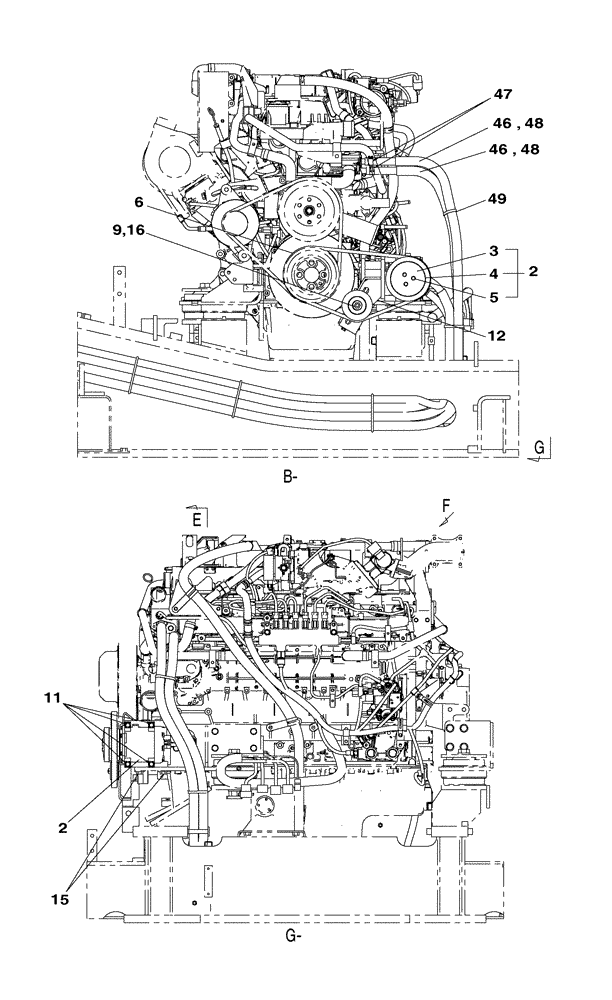

Запчасти Case CX350C (09-017[02]) - CAB AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

2

KHR3197

COMPRESSOR

1шт.

Include(s) 3 - 5

1шт.

3

KHR3198

CLUTCH

1шт.

4

KHR3974

PROTECTIVE COVER

1шт.

5

KHR3975

BOLT

3шт.

6

84214729

BELT

1шт.

9

157292A1

NUT

1шт.

11

KAR0921

BOLT,Spcl

M8 x 90

4шт.

12

KSR12531

SUPPORT

1шт.

15

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

2шт.

16

151977A1

WASHER

2шт.

46

KHR25370

HOSE ASSY.

4600 mm

2шт.

47

KHH10750

COLLAR

4шт.

48

KBR0720

PLASTIC-RUBBER TUBE

4400 mm

2шт.

49

150071A1

MOUNTING CLIP

380 mm

2шт.
