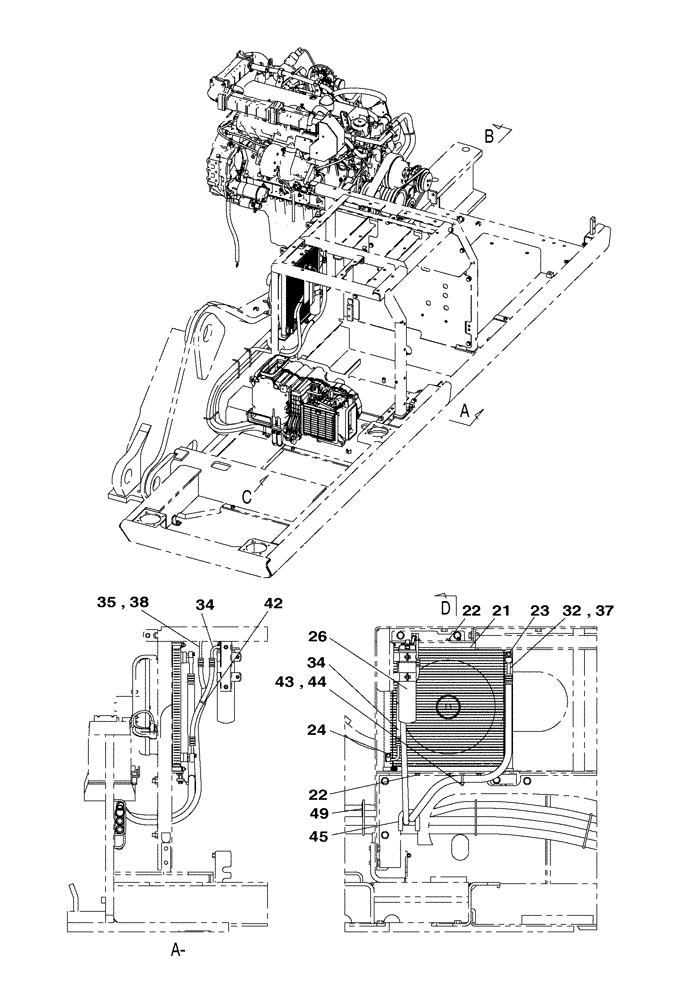

Запчасти Case CX350C (09-017[01]) - CAB AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

21

KHR25311

CONDENSER

Was pn KHR25310

1шт.

22

166350A1

BOLT

M8 x 20

6шт.

23

162457A1

SPECIAL BOLT,Spcl

M6 x 28

1шт.

24

162043A1

BOLT,Spcl, M6

M6 x 28

1шт.

26

KHR13590

RECEIVER-DRYER

1шт.

32

KHR25330

LARGE HOSE

HOSE,LARGE

1шт.

34

KHR25350

LARGE HOSE

HOSE,LARGE

1шт.

35

KHR25360

LARGE HOSE

HOSE,LARGE

1шт.

37

162635A1

TUBE

3300 mm

1шт.

38

150776A1

PLASTIC-RUBBER TUBE

2000 mm

1шт.

42

150496A1

MOUNTING CLIP

250 mm

1шт.

43

KHR2584

CLAMP

1шт.

44

KHJ1215

BOLT,Spcl

M8 x 25

1шт.

49

150071A1

MOUNTING CLIP

380 mm

2шт.
