(09-013[00]) - OPERATORS COMPARTMENT - HAND CONTROL ARM, RIGHT

Запчасти Case CX350C (09-013[00]) - OPERATORS COMPARTMENT - HAND CONTROL ARM, RIGHT (09) - CHASSIS/ATTACHMENTS

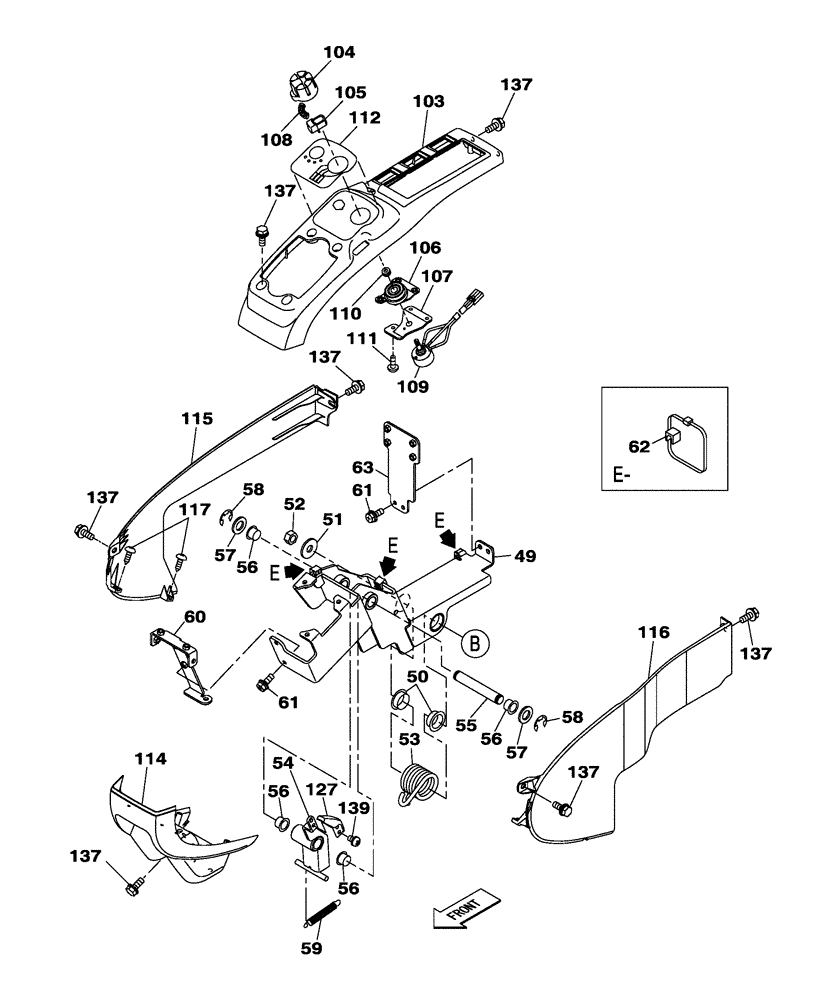

Схема запчастей Case CX350C - (09-013[00]) - OPERATORS COMPARTMENT - HAND CONTROL ARM, RIGHT (09) - CHASSIS/ATTACHMENTS
116
53
137
137
61
105
56
56
117
55
59
139
51
137
58
107
60
115
49
111
110
63
50
58
109
103
137
56
108
137
106
56
137
57
61
114
62
54
127
104
52
137
57
112
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

49

KHN24090

SUPPORT

1шт.

50

KHN2261

BUSHING

2шт.

51

151161A1

WASHER

1шт.

52

162R012VR

NUT

1шт.

53

KHN24000

SPRING

1шт.

54

KHN24040

BELLCRANK

1шт.

55

KHN24060

PIN

1шт.

56

KHN2249

BUSHING

4шт.

57

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

58

KHN2270

LOCKING RING

2шт.

59

KHN26200

SPRING

1шт.

60

KHN24100

BRACKET, SUPPORTING

1шт.

61

KHN2132

BOLT,Hex Flg Hd, M6 x 16

4шт.

62

KHN17050

CLIP

3шт.

63

KHN24930

FRAME

1шт.

103

KHN26400

COVER

1шт.

104

KHN15100

BUTTON

1шт.

105

KHN15110

BUTTON

1шт.

106

KHN15120

ELEC SUPPORT PLATE

1шт.

107

KHN15130

BRACKET

1шт.

108

KHN15140

SPRING

1шт.

109

KHR2751

SWITCH

1шт.

110

KHR2741

PACKING

1шт.

111

KHR2737

SELF-TAP SCREW

3шт.

112

KHN14071

DECAL

1шт.

114

KHN26410

COVER

1шт.

115

KHN26420

COVER

1шт.

116

KHN26430

COVER

1шт.

117

KHR2737

SELF-TAP SCREW

4шт.

127

KHN12360

LEVER

1шт.

137

KHN2132

BOLT,Hex Flg Hd, M6 x 16

18шт.

139

KHN23760

SCREW

4шт.
