(09-011[00]) - OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING

Запчасти Case CX350C (09-011[00]) - OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING (09) - CHASSIS/ATTACHMENTS

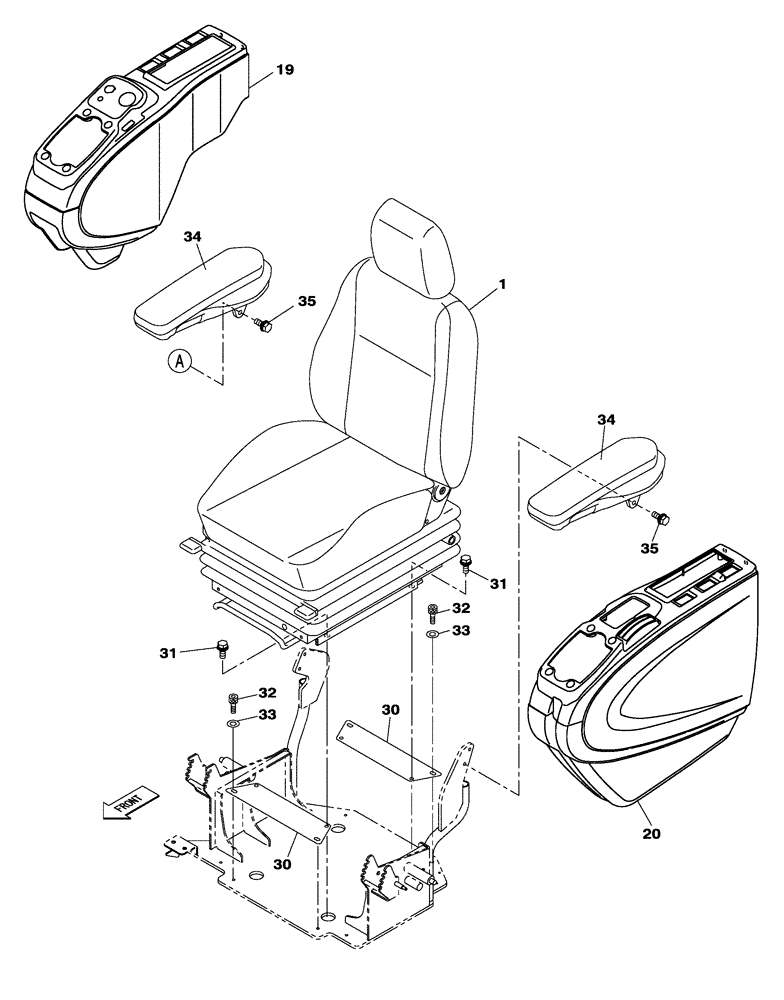

Схема запчастей Case CX350C - (09-011[00]) - OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING (09) - CHASSIS/ATTACHMENTS
20
32
33
34
31
34
35
31
32
19
30
33
1
30
35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87706000

DRIVER SEAT

1шт.

See Figure(s) 09-022-00 01

1шт.

30

KHN13531

PLATE

2шт.

31

166350A1

BOLT

4шт.

32

108R008Y020R

HEX SOC SCREW

4шт.

33

892-11008

LOCK WASHER,8mm ID

4шт.

34

KHN27560

ARMREST

2шт.

35

KHN17270

BOLT,Spcl

4шт.

19

REF

INSTRUCTION

Right

1шт.

See Figure(s) 09-020-00 01

1шт.

20

REF

INSTRUCTION

Left

1шт.

See Figure(s) 09-019-00 01

1шт.

Выбрано товаров: 12
