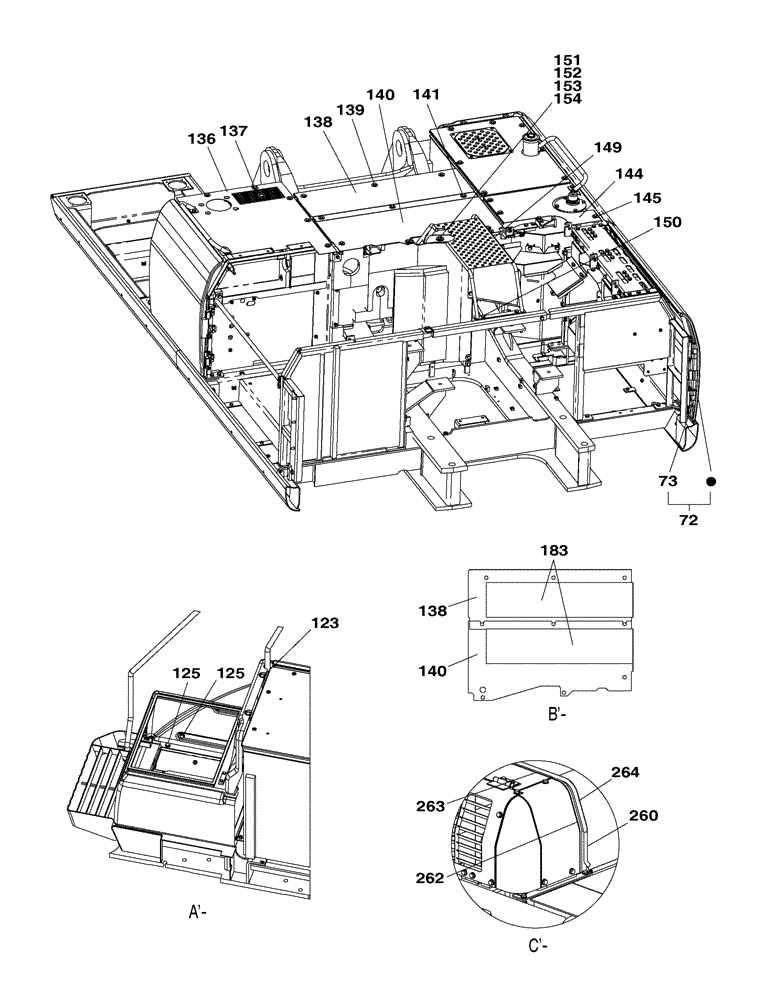

Запчасти Case CX350C (09-005[09]) - COWLING (09) - CHASSIS/ATTACHMENTS

72

KSN15420Y2

INSPECTION DOOR

1шт.

Include(s) 73, 74

1шт.

73

KHN20080

HINGE

2шт.

74

KHN24520

LOCK

1шт.

123

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

125

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

136

KSN15370G1

TOP COVER

1шт.

137

KHN12020

BOLT,Spcl

7шт.

138

KSN11280G1

COVER

1шт.

139

KHN12020

BOLT,Spcl

6шт.

140

KSN14690G1

TOP COVER

1шт.

141

KHN12020

BOLT,Spcl

3шт.

144

KSN14900G1

TOP COVER

1шт.

145

KHN12020

BOLT,Spcl

4шт.

149

KSN14890

STEP

1шт.

150

166352A1

BOLT

M12 x 30

2шт.

151

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

152

162409A1

WASHER

1шт.

153

150811A1

WASHER

1шт.

154

KHN2061

WASHER

1шт.

183

KSN14600

NOISE PROTECTION

2шт.

260

KAN3580

TRIM

175 mm

1шт.

262

KHN27940

SEAL PROTECTION

490 mm

1шт.

263

KHN27950

SEAL PROTECTION

990 mm

1шт.

264

KHN27960

SEAL PROTECTION

1410 mm

1шт.
