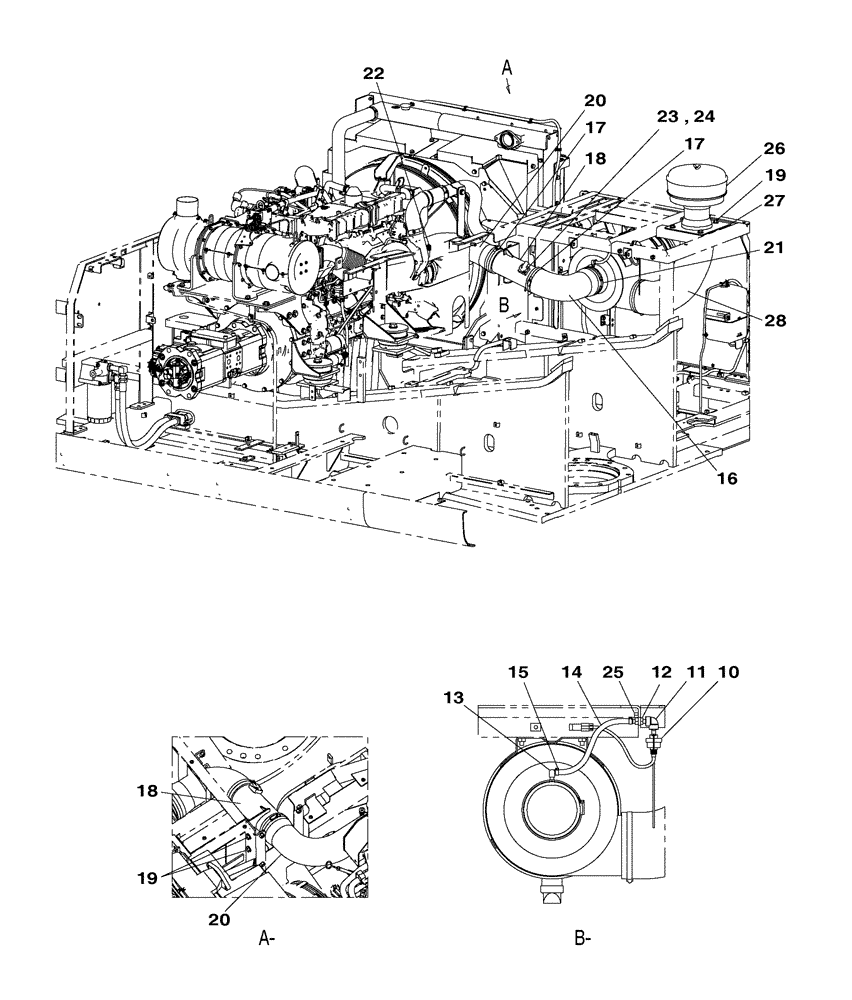

Запчасти Case CX350C (02-002[01]) - AIR FILTRATION (02) - ENGINE

10

KHH10330

SENSOR

1шт.

11

165818A1

ELBOW

1шт.

12

KRH1236

SEAL

1шт.

13

KRH1237

ELBOW

1шт.

14

KHH10740

HYDRAULIC HOSE,7.00 mm ID x 250.00 mm

1шт.

15

165951A1

CLAMP

2шт.

16

KSH10730

LARGE HOSE

HOSE,LARGE

1шт.

17

150545A1

COLLAR

2шт.

18

KSH11660

BRACKET

1шт.

19

166352A1

BOLT

M12 x 30

6шт.

20

KSH10750

LARGE HOSE

HOSE,LARGE

1шт.

21

150855A1

HOSE CLAMP,127mm - 146mm

1шт.

22

KHH13540

CLAMP

1шт.

23

102R004Y012R

BOLT

M4 x 12

2шт.

24

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

25

157742A1

NUT

1шт.

26

KHH13120

FILTER ASSY

1шт.

27

KSH10280

SUCTION PIPE

1шт.

28

KSH10140

LARGE HOSE

HOSE,LARGE

1шт.
