/ / / / / / / / (09-004[01]) - COUNTERWEIGHT - SOUNDPROOFING - CX370C-CX370C NLC
Запчасти Case CX350C (09-004[01]) - COUNTERWEIGHT - SOUNDPROOFING - CX370C-CX370C NLC (09) - CHASSIS/ATTACHMENTS

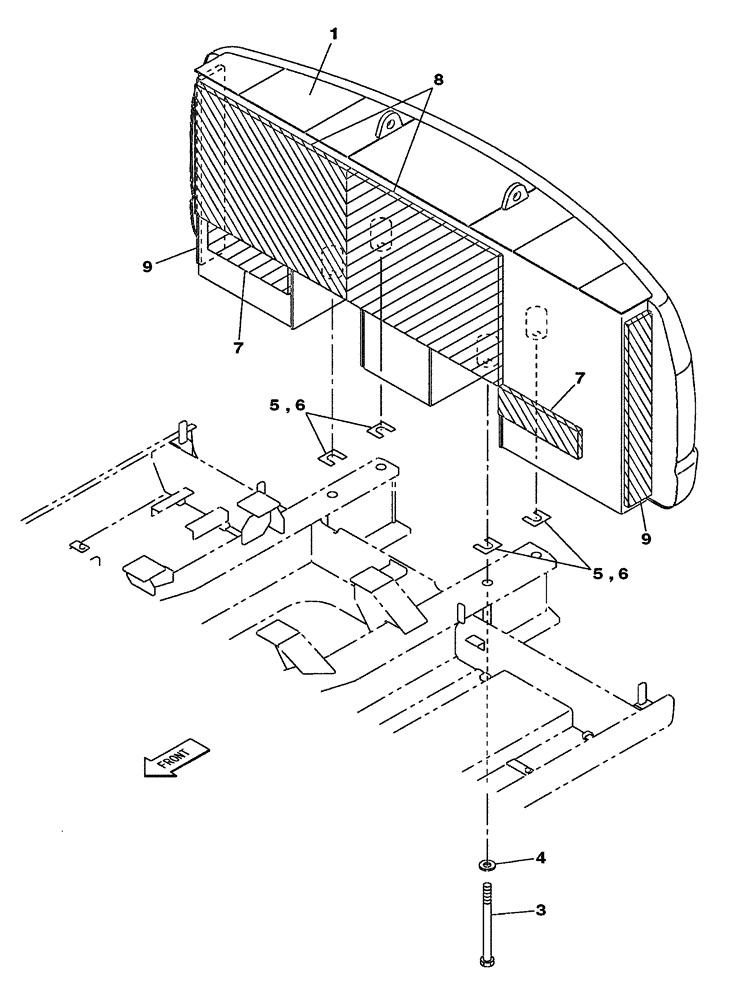

![Схема запчастей Case CX350C - (09-004[01]) - COUNTERWEIGHT - SOUNDPROOFING - CX370C-CX370C NLC (09) - CHASSIS/ATTACHMENTS](https://partsell.ru/storage/images/casece/241547.png)
6
5
4
3
9
6
8
7
6
7
9
1
2
KSB14850Y2
COUNTERWEIGHT
1шт.
3
NSS
NOT SOLD SEPARAT
1шт.
4
KSB0862
BOLT
M33 x 400
4шт.
5
KSB0863
WASHER
4шт.
6
KSB0864
SPACER
0.8 mm
2шт.
7
KSB0865
SPACER
1.2 mm
2шт.
8
KSB0885
NOISE PROTECTION
2шт.
9
KSB0886
NOISE PROTECTION
2шт.
10
KSB11060
NOISE PROTECTION
2шт.
