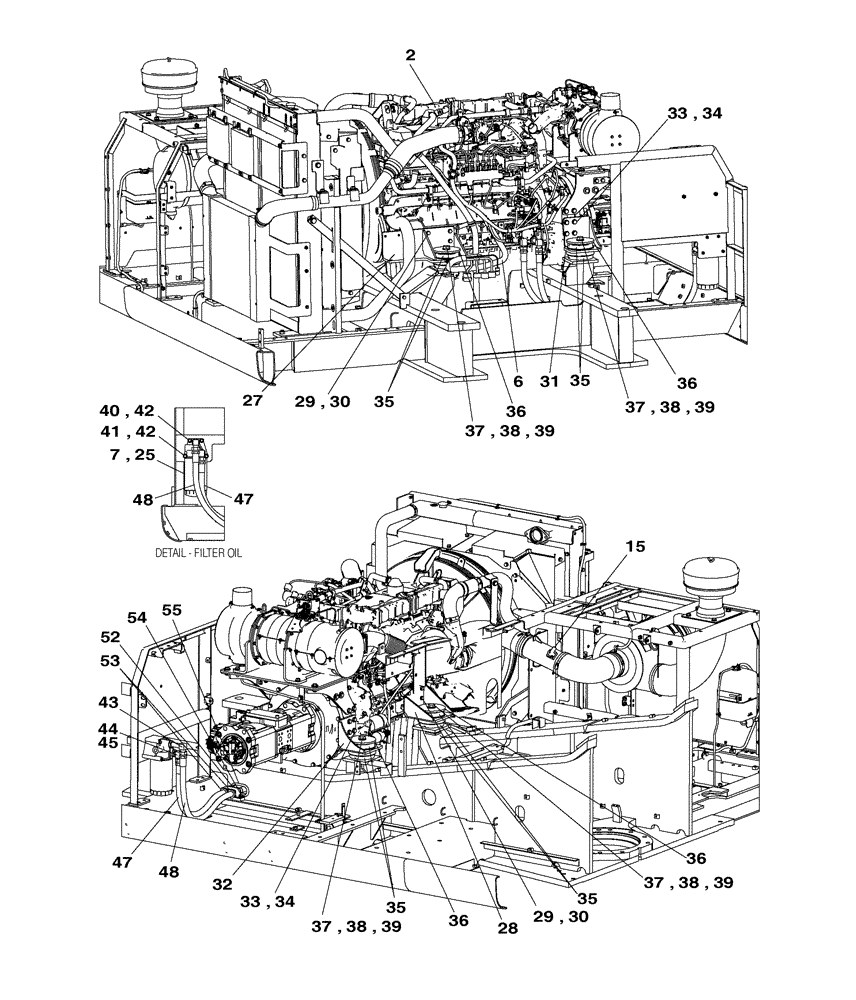

Запчасти Case CX350C (02-001[01]) - ENGINE MOUNTING - ENGINE - OIL CIRCUIT (02) - ENGINE

2

KSH11720

ENGINE

1шт.

See Figure(s) 02-001-01 01 - 02-001-03 01; And See Figure(s) 02-005-02 01 - 02-15001 01, 03-040-01 01 - 03-042-01 01, 04-060-01 01 - 04-826-01 01

1шт.

2

47609677ER

REMAN-BASIC ENGINE

1шт.

2

47609677EPAC

CORE-BASIC ENGINE

Return Number

1шт.

6

KSH10920

WIRE HARNESS

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

25

NSS

NOT SOLD SEPARAT

1шт.

27

KSH11710

ENGINE MOUNT

1шт.

28

KSH11680

ENGINE MOUNT

1шт.

29

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

10шт.

30

150409A1

WASHER

10шт.

31

KSH11690

ENGINE MOUNT

1шт.

32

KSH11700

ENGINE MOUNT

1шт.

33

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

34

150811A1

WASHER

8шт.

35

KSH11610

SILENTBLOC

8шт.

36

KSH11670

PLATE

4шт.

37

827-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

4шт.

38

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

8шт.

39

KSH0923

SPECIAL NUT

4шт.

40

102R008Y110R

BOLT

2шт.

41

KHH0515

BOLT

2шт.

42

153081A1

WASHER

4шт.

43

KHJ22650

ELBOW

1шт.

44

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

1шт.

Include(s) 45

1шт.

45

154503A1

O-RING

1шт.

47

KSH1054

HYDRAULIC HOSE,19.00 mm ID x 1550.00 mm

1шт.

48

KSH1056

HYDRAULIC HOSE,19.00 mm ID x 1670.00 mm

1шт.

52

KHH13550

BRACKET

1шт.

53

KHJ2023

HOSE CLAMP

2шт.

54

166351A1

BOLT,Sems, M10 x 20mm

1шт.

55

KEJ0421

GROMMET

1шт.
