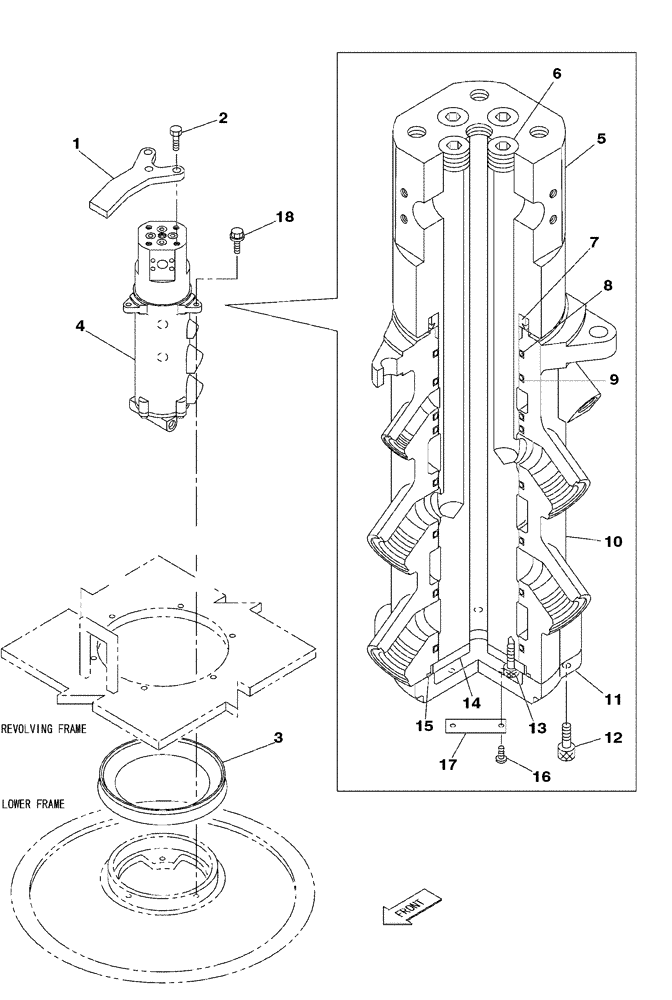

Запчасти Case CX350C (08-048[00]) - SWING JOINT (08) - HYDRAULICS

1

KSA11510

LOCKING BAR

1шт.

2

166373A1

BOLT,Sems, M16 x 40mm

M16 x 40

3шт.

3

KHA10150

SEAL

SEALRING

1шт.

4

KSA1305

HYDRAULIC SWIVEL

1шт.

Include(s) 5 - 17

1шт.

4

KSA1305R

REMAN-HYDRAULIC SWIV

CX350C CRAWLER EXCAVATOR TIER 4 (NA)

1шт.

4

KSA1305C

CORE-HYDRAULIC SWIV

Return Number

1шт.

5

KSA1303

SHAFT

1шт.

Include(s) 6

1шт.

6

150829A1

PLUG

4шт.

7

KTA1092

SHAFT SEAL

1шт.

8

KHA10120

O-RING

1шт.

9

KTA1093

SEALING RING

SEALRING

6шт.

10

KSA1304

ROTOR

1шт.

11

KTA1095

COVER

1шт.

12

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

13

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

14

KTA1096

PLATE

1шт.

15

154761A1

O-RING,119.4mm ID x 3.1mm Width

1шт.

16

NSS

NOT SOLD SEPARAT

2шт.

17

NSS

NOT SOLD SEPARAT

1шт.

18

105R012Y045R

BOLT

M12 x 45

3шт.
