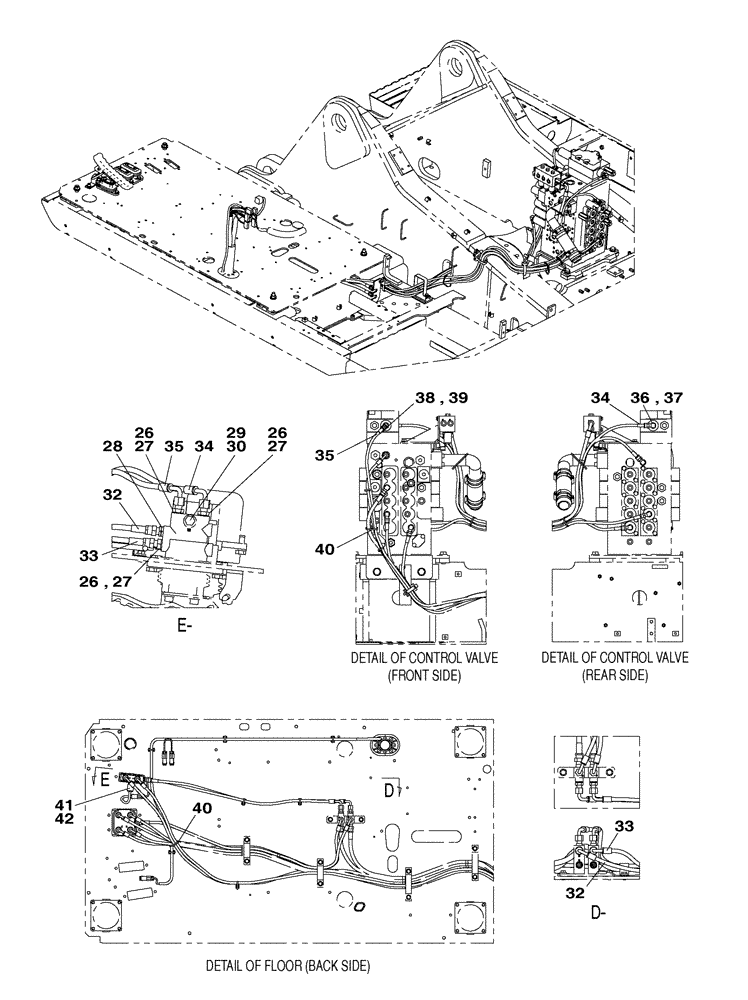

Запчасти Case CX350C (08-030[02]) - HYDRAULIC CIRCUIT - SMALL FLOW (08) - HYDRAULICS

1

KSJ16130

HOSE ASSY.

1шт.

2

157587A1

ELBOW

1шт.

Include(s) 3

1шт.

3

154523A1

O-RING

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

1шт.

Include(s) 5

1шт.

5

154487A1

O-RING

1шт.

6

KSJ13560

HYDRAULIC HOSE,1300.00 mm

1шт.

7

157585A1

ELBOW

1шт.

Include(s) 8

1шт.

8

154487A1

O-RING

1шт.

9

157936A1

ELBOW

1шт.

Include(s) 10

1шт.

10

154503A1

O-RING

1шт.

11

168988A1

ADAPTER

1шт.

12

KSJ13530

HYDRAULIC HOSE,1660.00 mm

1шт.

13

KSJ13540

HYDRAULIC HOSE,1790.00 mm

1шт.

14

KSJ13550

HYDRAULIC HOSE,1810.00 mm

1шт.

15

150496A1

MOUNTING CLIP

1шт.

16

KBJ12300

SUPPORT

Replaced by KSJ17790

1шт.

16

KSJ17790

SUPPORT

1шт.

17

166052A1

BOLT

3шт.

18

KRJ11580

HOSE CLIP

2шт.

19

KRJ11590

SUPPORT

1шт.

20

166052A1

BOLT

2шт.

21

KHJ2025

CLAMP

1шт.

22

KHJ2021

HOSE CLAMP

1шт.

23

166052A1

BOLT

1шт.

24

KSJ13520

BRACKET

1шт.

25

166351A1

BOLT,Sems, M10 x 20mm

2шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

Include(s) 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

161841A1

HYD CONNECTOR

1шт.

29

159002A1

PLUG

1шт.

Include(s) 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

32

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

900 mm

1шт.

33

KHJ2088

HOSE

850 mm

1шт.

34

KHJ19000

HOSE

4050 mm

1шт.

35

KHJ12240

HOSE

3750 mm

1шт.

36

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

150933A1

ELBOW

1шт.

Include(s) 39

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

150496A1

MOUNTING CLIP

250 mm

2шт.

41

KHR21490

PRESSURE SWITCH

1шт.

Include(s) 41

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
