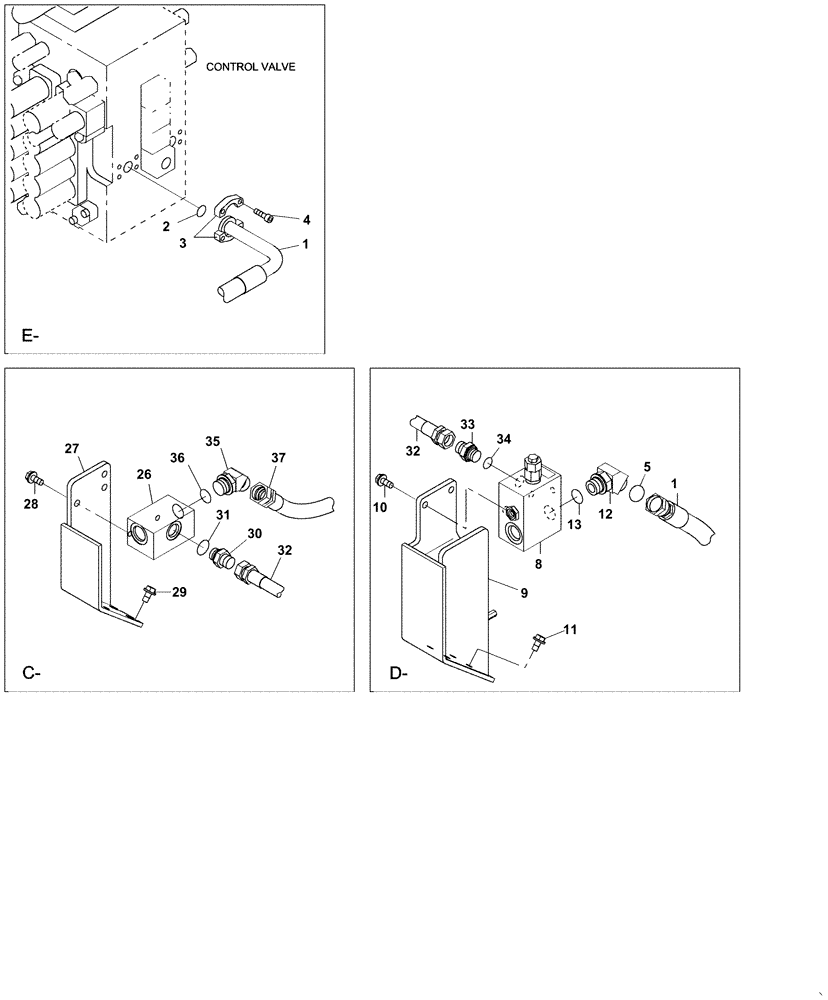

Запчасти Case CX350C (08-029[01A]) - HYDRAULIC CIRCUIT - SINGLE ACTING CIRCUIT - OPTIONAL (08) - HYDRAULICS

1

KSJ16010

HYDRAULIC HOSE

1шт.

2

162246A1

O-RING

1шт.

3

153459A1

FLANGE

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

8

KHJ15050

VALVE PRESSURE RELIE

1шт.

9

KSJ17120

BRACKET

1шт.

10

166352A1

BOLT

2шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

12

KHJ11370

ELBOW

1шт.

13

152211A1

O-RING

1шт.

26

KRJ16400

MANIFOLD VALVE

1шт.

27

KSJ16040

BRACKET

1шт.

28

166352A1

BOLT

2шт.

29

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

30

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

1шт.

31

150542A1

O-RING

1шт.

32

KSJ17140

HYDRAULIC HOSE

1шт.

33

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

1шт.

34

150542A1

O-RING

1шт.

35

157587A1

ELBOW

1шт.

36

152211A1

O-RING

1шт.

37

KSJ16080

HYDRAULIC HOSE

, Serial Range: -NCSAP1297

1шт.

37

KSJ20290

HYDRAULIC HOSE

, Start Serial: NCSAP1298

1шт.
