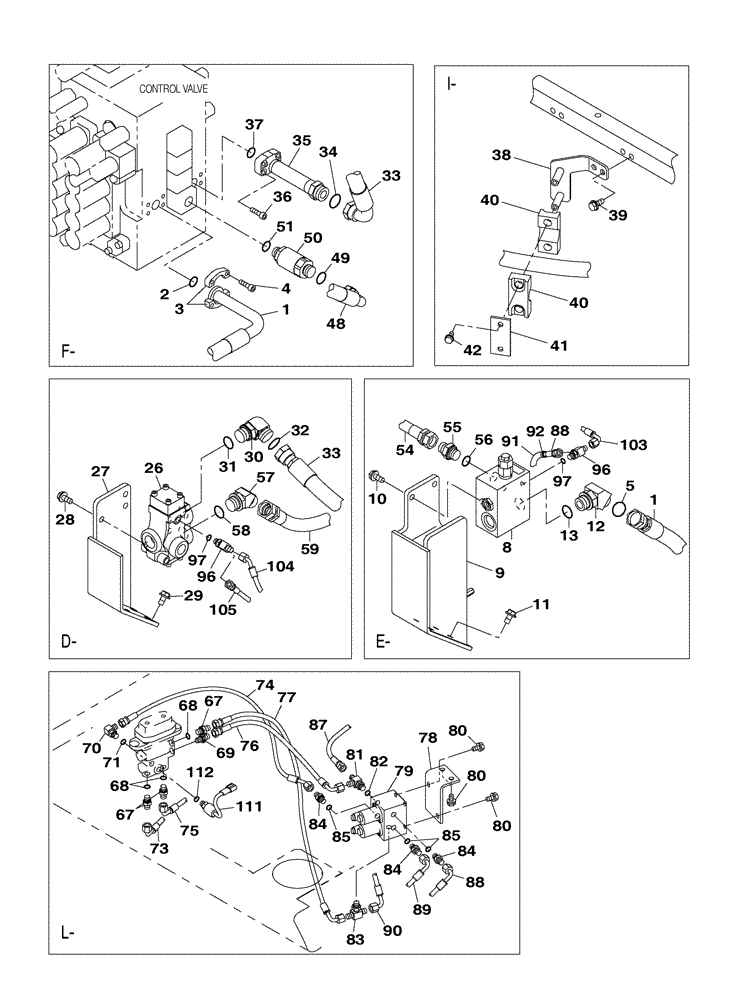

Запчасти Case CX350C (08-028[03]) - HYDRAULIC CIRCUIT - OPTIONAL - MULTI-PURPOSE - 3 WAY (08) - HYDRAULICS

1

KSJ16010

HYDRAULIC HOSE

1050 mm

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

8

KHJ10410

VALVE SECTION

1шт.

See Figure(s) 08-253-00 01

1шт.

9

KSJ17120

BRACKET

1шт.

10

166352A1

BOLT

M12 x 30

2шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

12

KHJ11370

ELBOW

1шт.

Include(s) 13

1шт.

13

154523A1

O-RING

1шт.

26

KHJ10420

VALVE SECTION

1шт.

See Figure(s) 08-252-00 01

1шт.

27

KSJ16040

BRACKET

1шт.

28

166352A1

BOLT

M12 x 30

2шт.

29

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

30

KHJ1805

ELBOW

1шт.

Include(s) 31

1шт.

31

154523A1

O-RING

2шт.

32

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

33

KSJ16050

HYDRAULIC HOSE

1650 mm

1шт.

34

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

35

KBJ11870

HYD TUBE,26 mm ID x 34 mm OD

1шт.

36

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

37

155211A1

O-RING

1шт.

38

KSJ17130

BRACKET

1шт.

39

166352A1

BOLT

M12 x 30

2шт.

40

KRJ11450

HOSE CLIP

2шт.

41

KRJ10800

PLATE

1шт.

42

166052A1

BOLT

M10 x 25

2шт.

48

KSJ13090

HYDRAULIC HOSE,19.00 mm ID x 1250.00 mm

1шт.

49

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

50

KHJ10480

VALVE SECTION

1шт.

Include(s) 51

1шт.

51

154503A1

O-RING

1шт.

54

KSJ17140

HYDRAULIC HOSE

860 mm

1шт.

55

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

1шт.

Include(s) 56

1шт.

56

154503A1

O-RING

1шт.

57

157587A1

ELBOW

1шт.

Include(s) 58

1шт.

58

154523A1

O-RING

1шт.

59

KSJ16080

HYDRAULIC HOSE

1200 mm

1шт.

67

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

Include(s) 68

1шт.

68

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

69

161841A1

HYD CONNECTOR

1шт.

70

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 71

1шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

73

KHJ12230

HYDRAULIC HOSE

3450 mm

1шт.

74

KHJ14650

HYDRAULIC HOSE

650 mm

1шт.

75

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

3100 mm

1шт.

76

KHJ2085

HOSE

600 mm

1шт.

77

KHJ2194

HOSE,6.3mm ID x 650mm L

650 mm

1шт.

78

KHJ11510

SUPPORT

1шт.

79

KHJ14780

VALVE SECTION

1шт.

See Figure(s)) 08-251-00 01

1шт.

80

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

4шт.

81

159497A1

TEE

1шт.

Include(s) 82

1шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

167321A1

TEE

1шт.

84

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

Include(s) 85

1шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

87

KHJ2036

HOSE

750 mm

1шт.

88

KHJ19010

HOSE

4400 mm

1шт.

89

KHJ18670

HOSE

4200 mm

1шт.

90

KHJ23570

FLEXIBLE HOSE

730 mm

1шт.

91

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

1000 mm

1шт.

92

150067A1

MOUNTING CLIP

150 mm

2шт.

96

159497A1

TEE

2шт.

Include(s) 97

1шт.

97

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

KHJ2090

HOSE

1000 mm

1шт.

104

KHJ24910

HOSE ASSY.

950 mm

1шт.

105

KHJ15180

HYDRAULIC HOSE

950 mm

1шт.

111

KHR21490

PRESSURE SWITCH

300 mm

1шт.

Include(s) 112

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
