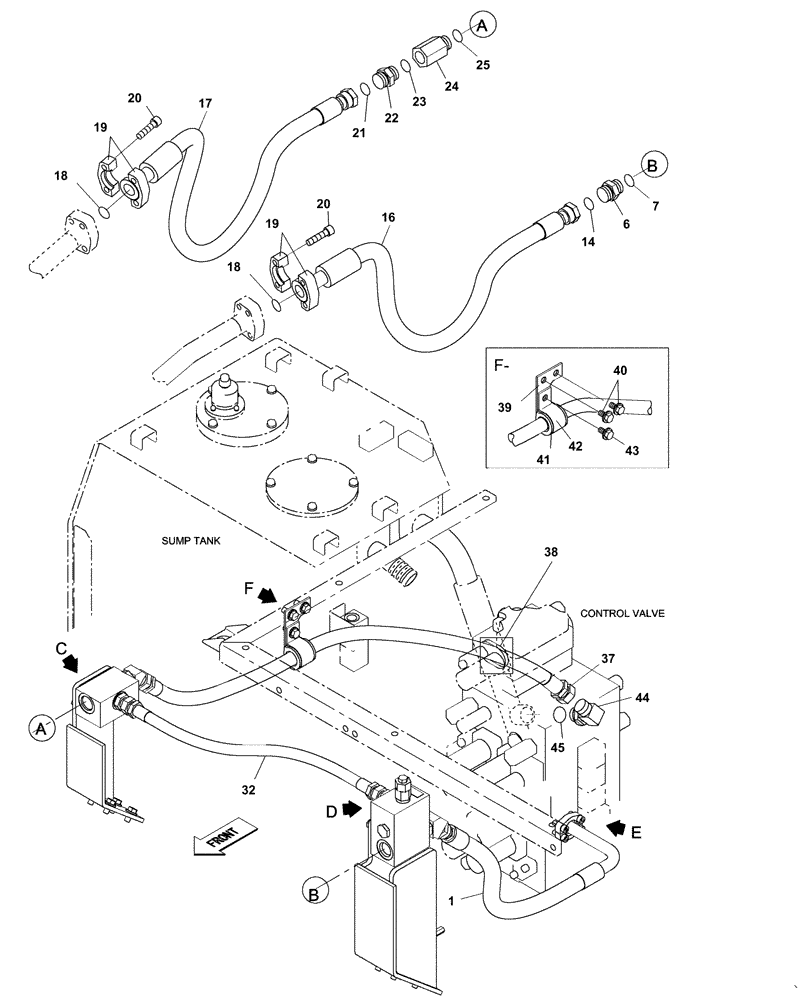

Запчасти Case CX350C (08-028[02]) - HYDRAULIC CIRCUIT - SINGLE ACTING CIRCUIT - OPTIONAL (08) - HYDRAULICS

1

KSJ16010

HYDRAULIC HOSE

1шт.

6

KHJ1349

ADAPTER

1шт.

7

152211A1

O-RING

1шт.

14

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

16

KSJ16030

HYDRAULIC HOSE

1шт.

17

KSJ13060

HYDRAULIC HOSE

1шт.

18

153626A1

O-RING

2шт.

19

150124A1

FLANGE

4шт.

20

108R014Y055R

BOLT

8шт.

21

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

22

KHJ1349

ADAPTER

1шт.

23

152211A1

O-RING

1шт.

24

KHJ25900

SOCKET

1шт.

25

152211A1

O-RING

1шт.

32

KSJ17140

HYDRAULIC HOSE

1шт.

37

KSJ16080

HYDRAULIC HOSE

, Serial Range: -NCSAP1297

1шт.

37

KSJ20290

HYDRAULIC HOSE

, Start Serial: NCSAP1298

1шт.

38

150071A1

MOUNTING CLIP

1шт.

39

KRJ16280

SUPPORT

1шт.

40

166352A1

BOLT

2шт.

41

KHJ2680

COLLAR CLAMP

1шт.

42

KBJ11860

SUPPORT

1шт.

43

166352A1

BOLT

1шт.

44

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

1шт.

45

152211A1

O-RING

1шт.
