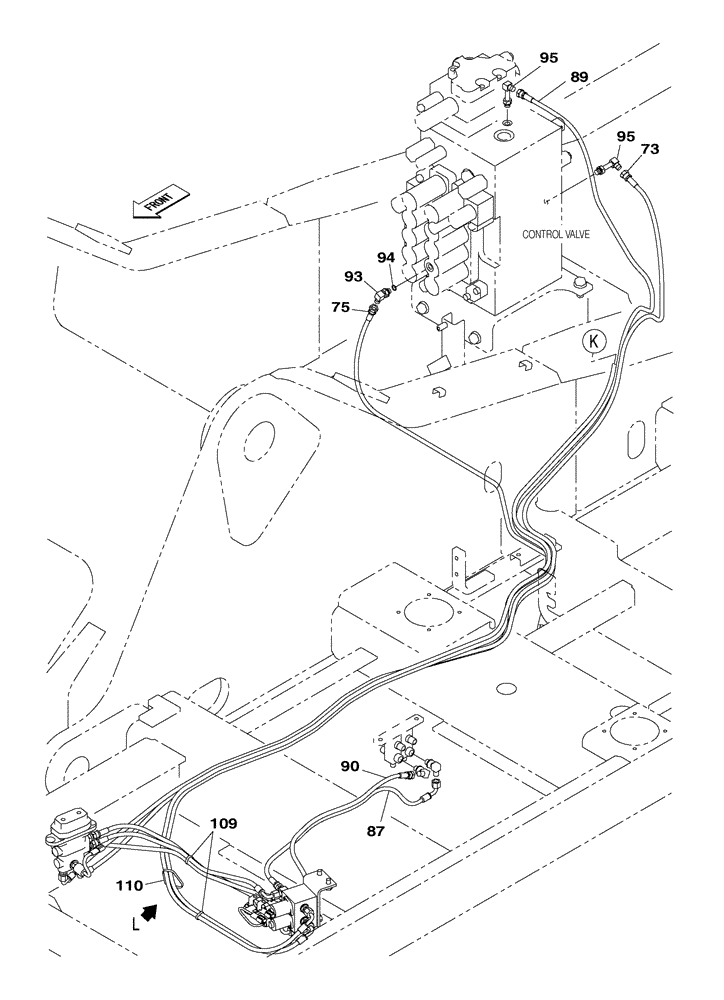

Запчасти Case CX350C (08-028[02]) - HYDRAULIC CIRCUIT - OPTIONAL - MULTI-PURPOSE - 3 WAY (08) - HYDRAULICS

73

KHJ12230

HYDRAULIC HOSE

3450 mm

1шт.

75

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

3100 mm

1шт.

87

KHJ2036

HOSE

750 mm

1шт.

89

KHJ18670

HOSE

4200 mm

1шт.

90

KHJ23570

FLEXIBLE HOSE

730 mm

1шт.

93

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 94

1шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

KHJ1178

ELBOW

2шт.

109

150496A1

MOUNTING CLIP

7шт.

110

150498A1

MOUNTING CLIP

250 mm

1шт.
