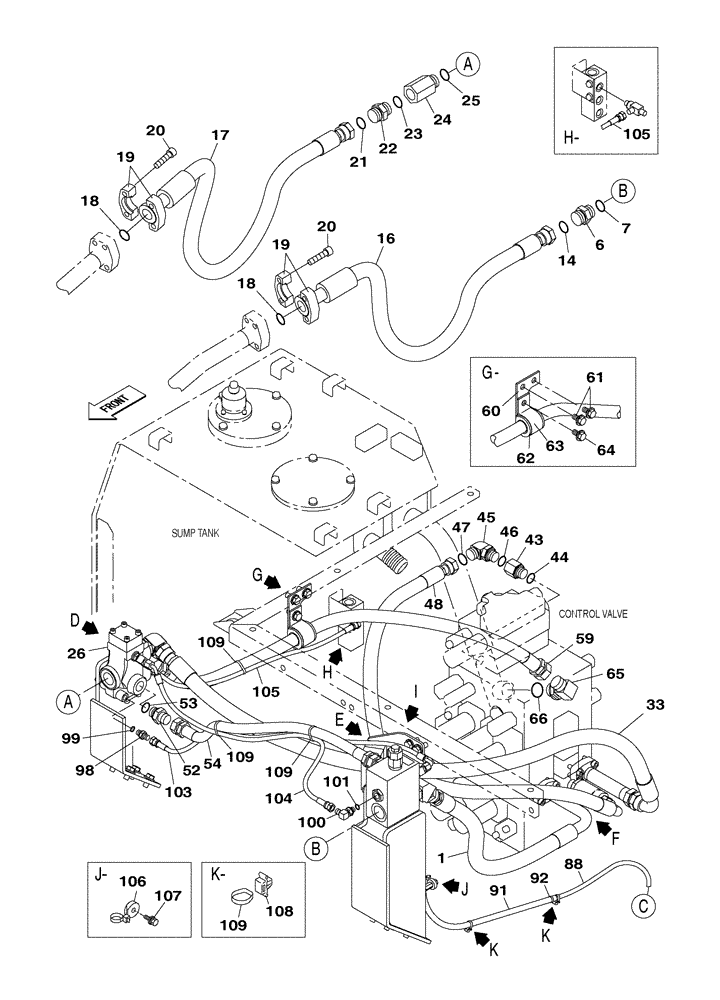

Запчасти Case CX350C (08-028[01]) - HYDRAULIC CIRCUIT - OPTIONAL - MULTI-PURPOSE - 3 WAY (08) - HYDRAULICS

6

KHJ1349

ADAPTER

1шт.

Include(s) 7

1шт.

7

154523A1

O-RING

1шт.

16

KSJ16030

HYDRAULIC HOSE

1710 mm

1шт.

17

KSJ13060

HYDRAULIC HOSE

1650 mm

1шт.

18

164450A1

O-RING

2шт.

19

150124A1

FLANGE

4шт.

20

108R014Y055R

BOLT

M14 x 55

8шт.

21

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

22

KHJ1349

ADAPTER

1шт.

Include(s) 23

1шт.

23

154523A1

O-RING

1шт.

24

KHJ0832

SOCKET

1шт.

Include(s) 25

1шт.

25

154523A1

O-RING

1шт.

26

KHJ10420

VALVE SECTION

1шт.

See Figure(s) 08-252-00 01

1шт.

33

KSJ16050

HYDRAULIC HOSE

1650 mm

1шт.

43

159198A1

ADAPTER

1шт.

Include(s) 44

1шт.

44

154503A1

O-RING

1шт.

45

KHJ1804

ELBOW

1шт.

Include(s) 46

1шт.

46

154503A1

O-RING

1шт.

47

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

48

KSJ13090

HYDRAULIC HOSE,19.00 mm ID x 1250.00 mm

1шт.

52

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

1шт.

Include(s) 53

1шт.

53

154503A1

O-RING

1шт.

54

KSJ17140

HYDRAULIC HOSE

860 mm

1шт.

59

KSJ16080

HYDRAULIC HOSE

1200 mm

1шт.

60

KRJ16280

SUPPORT

1шт.

61

166352A1

BOLT

M12 x 30

2шт.

62

KHJ2680

COLLAR CLAMP

1шт.

63

KBJ11860

SUPPORT

1шт.

64

166352A1

BOLT

M12 x 30

1шт.

65

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

1шт.

Include(s) 66

1шт.

66

154523A1

O-RING

1шт.

88

KHJ19010

HOSE

4400 mm

1шт.

91

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

1000 mm

1шт.

92

150067A1

MOUNTING CLIP

150 mm

2шт.

98

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Include(s) 99

1шт.

99

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

100

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 101

1шт.

101

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

KHJ2090

HOSE

1000 mm

1шт.

104

KHJ24910

HOSE ASSY.

950 mm

1шт.

105

KHJ15180

HYDRAULIC HOSE

950 mm

1шт.

106

KHR2584

CLAMP

1шт.

107

KHJ1215

BOLT,Spcl

M8 x 25

1шт.

108

KHR10220

MOUNTING CLIP

2шт.

109

150496A1

MOUNTING CLIP

7шт.
