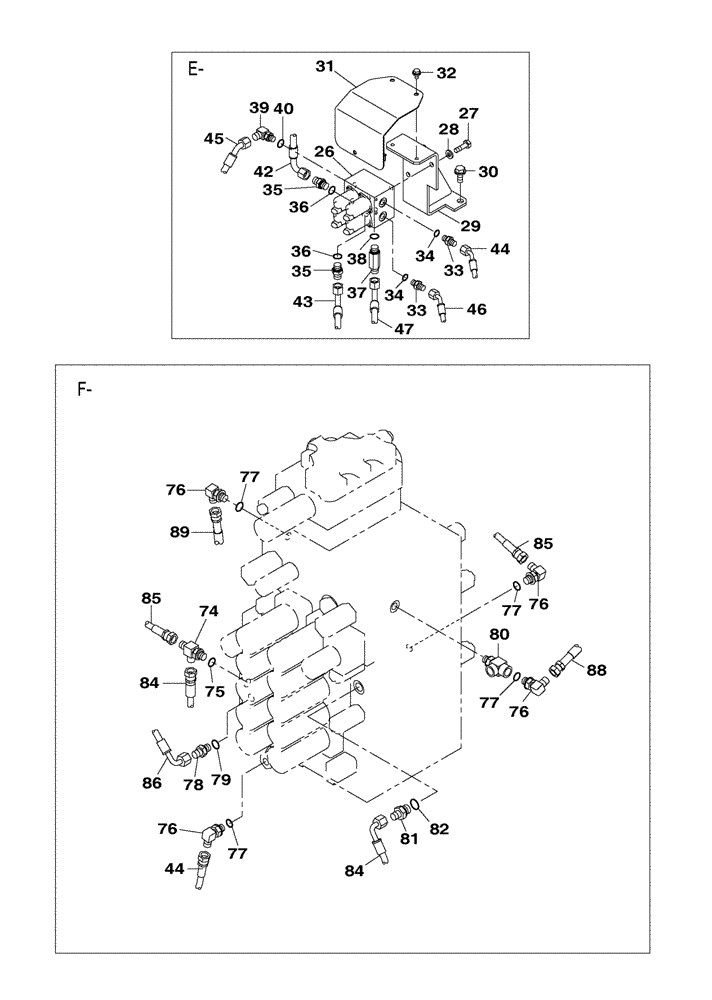

Запчасти Case CX350C (08-027[03]) - HYDRAULIC CIRCUIT - PILOT - LEAK-OFF RETURN (08) - HYDRAULICS

26

KHJ15450

SOLENOID VALVE

1шт.

See Figure(s) 08-250-01 01

1шт.

27

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

28

150409A1

WASHER

2шт.

29

KHJ24850

BRACKET, SUPPORTING

1шт.

30

166352A1

BOLT

M12 x 30

2шт.

31

KHJ16220

COVER

1шт.

33

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

Include(s) 34

1шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

35

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

2шт.

Include(s) 36

1шт.

36

154475A1

O-RING

1шт.

37

KAJ2351

FITTING

1шт.

Include(s) 38

1шт.

38

154475A1

O-RING

1шт.

39

153559A1

ELBOW

1шт.

Include(s) 40

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

42

KTJ1639

HOSE

1шт.

43

KHJ10300

HYDRAULIC HOSE

1шт.

44

KHJ24900

HOSE ASSY.

1шт.

45

KHJ24860

HOSE ASSY.

1шт.

46

KHJ24890

HOSE ASSY.

1шт.

47

KAJ3184

HYDRAULIC HOSE

Replaces 164115A1

1шт.

74

159497A1

TEE

1шт.

Include(s) 75

1шт.

75

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

76

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

4шт.

Include(s) 77

1шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Include(s) 79

1шт.

79

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

80

KHJ12530

TEE

1шт.

81

153378A1

ADAPTER

1шт.

Include(s) 82

1шт.

82

154475A1

O-RING

1шт.

84

KHJ2194

HOSE,6.3mm ID x 650mm L

650 mm

1шт.

85

KHJ24870

HOSE ASSY.

700 mm

1шт.

86

KHJ2309

HOSE

550 mm

1шт.

88

KHJ14400

HYDRAULIC HOSE,6.35 mm ID x 2900.00 mm

1шт.

89

KHJ2727

HYDRAULIC HOSE,6.30 mm ID x 2250.00 mm

1шт.
