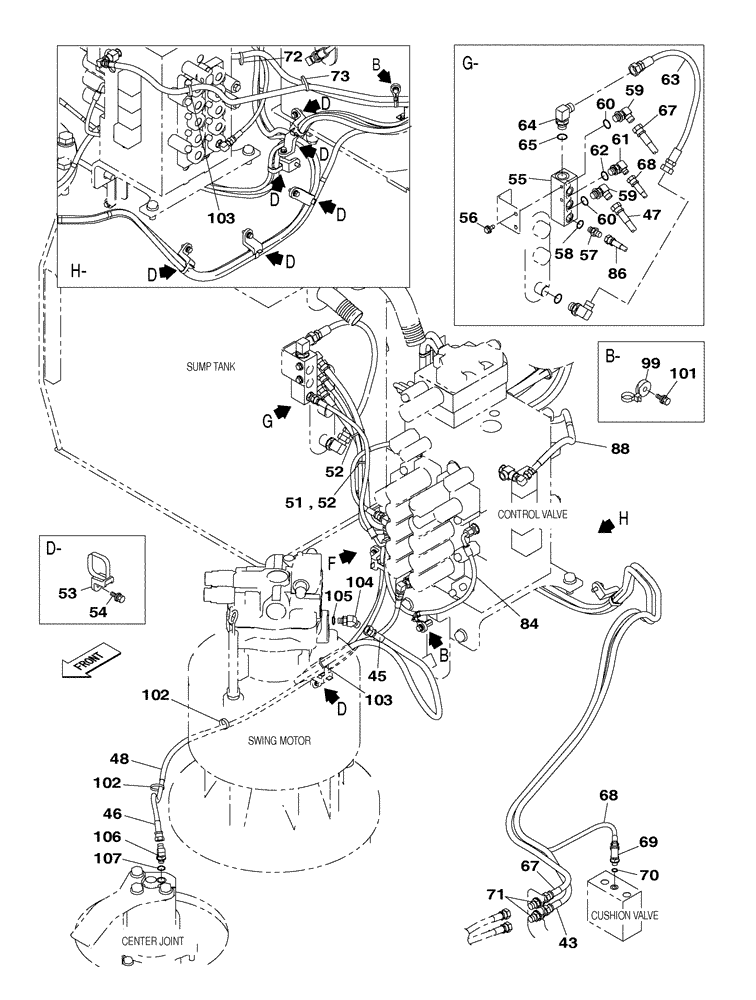

Запчасти Case CX350C (08-027[02]) - HYDRAULIC CIRCUIT - PILOT - LEAK-OFF RETURN (08) - HYDRAULICS

43

KHJ10300

HYDRAULIC HOSE

1шт.

45

KHJ24860

HOSE ASSY.

1шт.

46

KHJ24890

HOSE ASSY.

1шт.

47

KAJ3184

HYDRAULIC HOSE

Replaces 164115A1

1шт.

48

152660A1

PLASTIC-RUBBER TUBE

1шт.

51

KHR10220

MOUNTING CLIP

1шт.

52

150496A1

MOUNTING CLIP

250 mm

2шт.

53

KHR2581

CLAMP

8шт.

54

KHJ1215

BOLT,Spcl

M8 x 25

8шт.

55

KNJ2574

MANIFOLD

1шт.

56

166350A1

BOLT

M8 x 20

2шт.

57

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Include(s) 58

1шт.

58

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

2шт.

Include(s) 60

1шт.

60

154475A1

O-RING

1шт.

61

156554A1

ELBOW

1шт.

Include(s) 62

1шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

63

KHJ11140

HYDRAULIC HOSE,12.70 mm ID x 550.00 mm

1шт.

64

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

1шт.

Include(s) 65

1шт.

65

154487A1

O-RING

1шт.

67

KTJ1644

HOSE

3200 mm, Replaces 152777A1

1шт.

68

163728A1

HYDRAULIC HOSE

3250 mm, Replaces 159005A1

1шт.

69

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 70

1шт.

70

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

71

162826A1

ADAPTER

2шт.

72

150071A1

MOUNTING CLIP

380 mm

1шт.

73

150496A1

MOUNTING CLIP

1шт.

84

KHJ2194

HOSE,6.3mm ID x 650mm L

650 mm

1шт.

86

KHJ2309

HOSE

1шт.

88

KHJ14400

HYDRAULIC HOSE,6.35 mm ID x 2900.00 mm

1шт.

99

KHR2584

CLAMP

4шт.

101

KHJ1215

BOLT,Spcl

5шт.

102

150071A1

MOUNTING CLIP

380 mm

3шт.

103

150496A1

MOUNTING CLIP

250 mm

8шт.

104

161087A1

ELBOW

1шт.

Include(s) 105

1шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

106

150933A1

ELBOW

1шт.

Include(s) 107

1шт.

107

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
