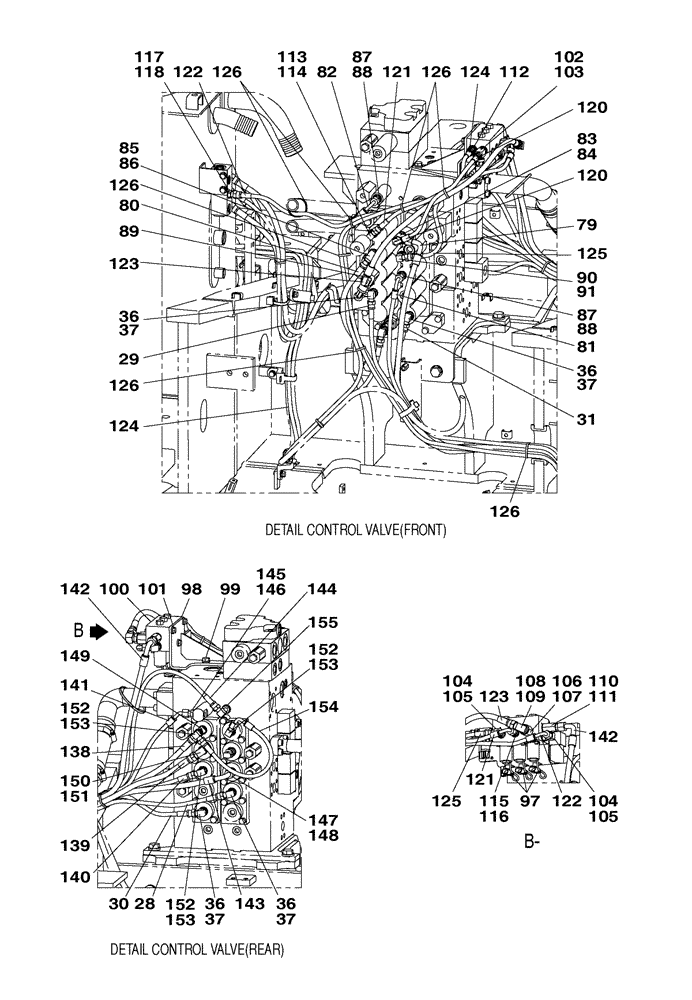

Запчасти Case CX350C (08-024[00]) - HYDRAULIC CIRCUIT - ATTACHMENT CONTROL VALVE PILOT (08) - HYDRAULICS
![Схема запчастей Case CX350C - (08-024[00]) - HYDRAULIC CIRCUIT - ATTACHMENT CONTROL VALVE PILOT (08) - HYDRAULICS](https://partsell.ru/storage/images/casece/113149.png)
№
Артикул
Название
Примечание
Количество
28
KHJ18020
HOSE
3550 mm
1шт.
29
KHJ2581
HOSE,6.3 mm ID x 3100.00 mm
3100mm
1шт.
30
KHJ18020
HOSE
3550 mm
1шт.
31
KHJ2581
HOSE,6.3 mm ID x 3100.00 mm
3100 mm
1шт.
36
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
4шт.
Include(s) 37
1шт.
37
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
79
159229A1
HOSE ASSY.
1шт.
80
152713A1
HOSE ASSY.
1700 mm
1шт.
81
KHJ1687
HOSE
1550 mm
1шт.
82
KHJ1221
HYDRAULIC HOSE
1700 mm
1шт.
83
167517A1
TEE
1шт.
Include(s) 84
1шт.
84
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
85
153559A1
ELBOW
1шт.
Include(s) 86
1шт.
86
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
87
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
2шт.
Include(s) 88
1шт.
88
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
89
KHJ1372
ADAPTER
1шт.
90
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
1шт.
Include(s) 91
1шт.
91
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
97
150496A1
MOUNTING CLIP
250 mm
3шт.
98
KBJ15690
BRACKET, SUPPORTING
1шт.
99
166351A1
BOLT,Sems, M10 x 20mm
M10 x 20
2шт.
100
KHJ23870
VALVE
1шт.
101
166350A1
BOLT
M8 x 20
3шт.
102
167666A1
FITTING
1шт.
Include(s) 103
1шт.
103
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
104
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
2шт.
Include(s) 105
1шт.
105
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
106
KHJ1584
UNION
1шт.
Include(s) 107
1шт.
107
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
108
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
1шт.
Include(s) 109
1шт.
109
154475A1
O-RING
1шт.
110
161173A1
ADAPTER
1шт.
Include(s) 111
1шт.
111
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
112
161841A1
HYD CONNECTOR
1шт.
113
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
1шт.
Include(s) 114
1шт.
114
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
115
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Include(s) 116
1шт.
116
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
117
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Include(s) 118
1шт.
118
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
120
KHJ2351
HOSE
420 mm
1шт.
121
KHJ2309
HOSE
550 mm
1шт.
122
KHJ2092
HOSE
1100 mm
1шт.
123
KHJ13680
HYDRAULIC HOSE
700 mm
1шт.
124
KHJ14790
HYDRAULIC HOSE
4100 mm
1шт.
125
KHJ2142
HOSE
500 mm
1шт.
126
150496A1
MOUNTING CLIP
250 mm
7шт.
138
157966A1
HOSE
1900 mm
1шт.
139
159073A1
HOSE
1750 mm
1шт.
140
163258A1
HOSE,6.4mm ID x 1750mm L
1шт.
141
KAJ3250
HOSE ASSY.
1шт.
142
KHJ19110
HOSE
1900 mm
1шт.
143
KHJ19110
HOSE
1900 mm
1шт.
144
KHJ1936
HOSE ASSY.
2050 mm
1шт.
145
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Include(s) 146
1шт.
146
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
147
152747A1
ADAPTER
1шт.
Include(s) 148
1шт.
148
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
149
KHJ11560
TEE
1шт.
150
153559A1
ELBOW
1шт.
Include(s) 151
1шт.
151
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
152
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
3шт.
Include(s) 153
1шт.
153
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
154
KHJ2084
HOSE
350 mm
1шт.
155
KHJ1178
ELBOW
1шт.
Выбрано товаров: 83
