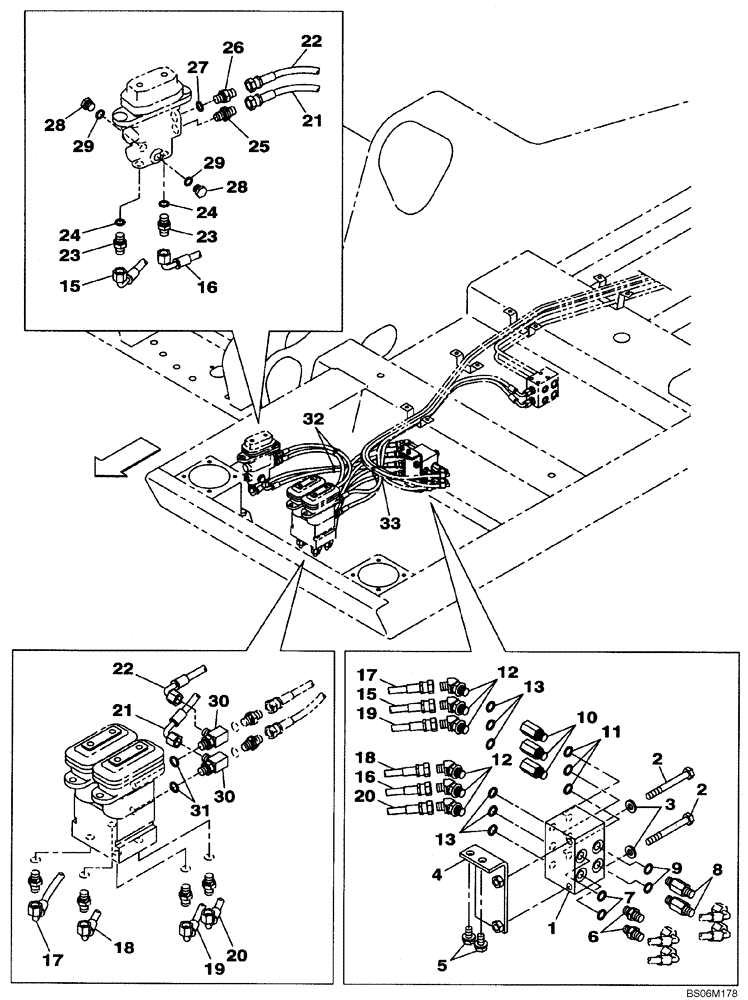

Запчасти Case CX350C (08-022[00]) - HYDRAULICS - TRAVEL CONTROL, SINGLE PEDAL (08) - HYDRAULICS

1

KHJ17130

VALVE SECTION

See Figure 08-75; Replaces 160355A1

1шт.

2

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

3

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

4

KBJ2886

BRACKET

1шт.

5

166351A1

BOLT,Sems, M10 x 20mm

2шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

162554A1

FITTING

Incl. 9

2шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

162525A1

STUD

Incl. 11

3шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

150933A1

ELBOW

Incl. 13

6шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

KHJ2239

HOSE,520.00 mm

1шт.

16

KHJ2179

HOSE

1шт.

17

KHJ2181

HOSE

1шт.

18

KHJ2343

HOSE

1шт.

19

KHJ2181

HOSE

1шт.

20

KHJ2343

HOSE

1шт.

21

KHJ2180

HOSE,6.3mm ID x 500mm L

1шт.

22

KHJ2180

HOSE,6.3mm ID x 500mm L

1шт.

23

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 24

2шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

161841A1

HYD CONNECTOR

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

159002A1

PLUG

Incl. 29

2шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

KHJ2773

TEE

Incl. 31

2шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

32

150496A1

MOUNTING CLIP

3шт.

33

150498A1

MOUNTING CLIP

1шт.
