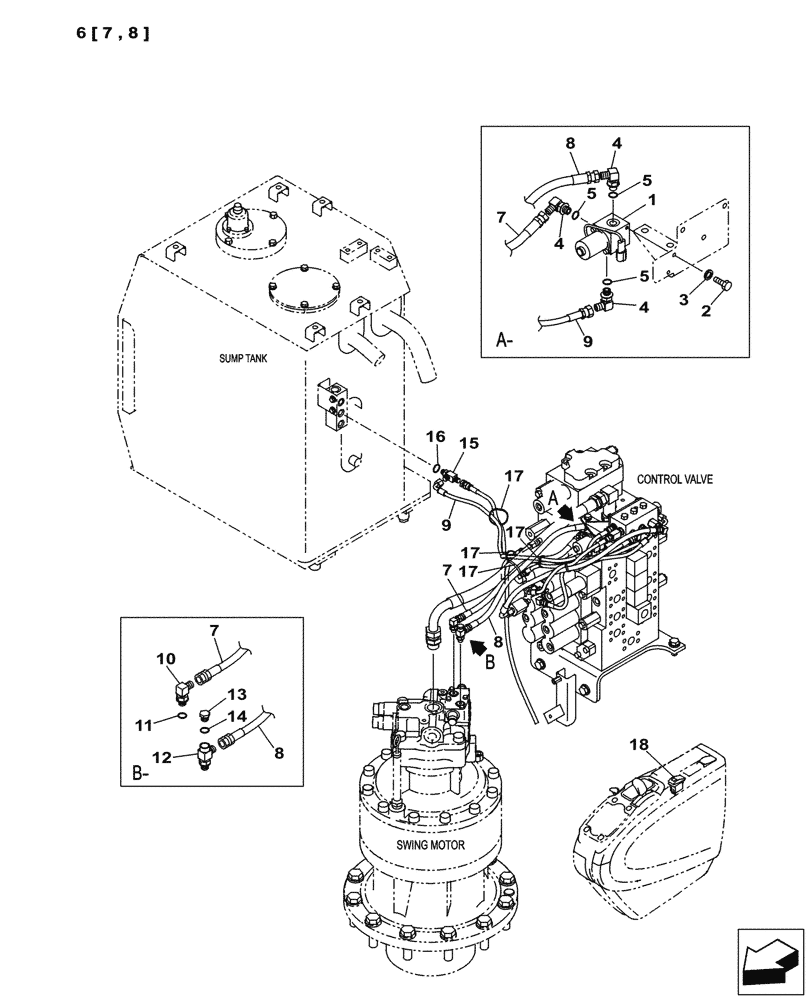

Запчасти Case CX350C (08-008[01]) - HYDRAULIC CIRCUIT - FREE SWING LINE (ANZ) (08) - HYDRAULICS

1

159205A1

VALVE

1шт.

2

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

3

183-106VR

SPRING WASHER

2шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

3шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

6

NSS

NOT SOLD SEPARAT

Hose, Assy

1шт.

7

KSJ13860

HYDRAULIC HOSE

1шт.

8

KSJ13850

HYDRAULIC HOSE

1шт.

9

KHJ2087

HYDRAULIC HOSE,800.00 mm

1шт.

10

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

11

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

KHJ11640

ORIFICE

1шт.

13

159002A1

PLUG

1шт.

14

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

KHJ2773

TEE

1шт.

16

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

150496A1

MOUNTING CLIP

4шт.

18

KHR16140

TOGGLE SWITCH

1шт.
