(08-002[02]) - HYDRAULIC PUMP - COUPLING - WITH AUXILIARY HYDRAULICS

Запчасти Case CX350C (08-002[02]) - HYDRAULIC PUMP - COUPLING - WITH AUXILIARY HYDRAULICS (08) - HYDRAULICS

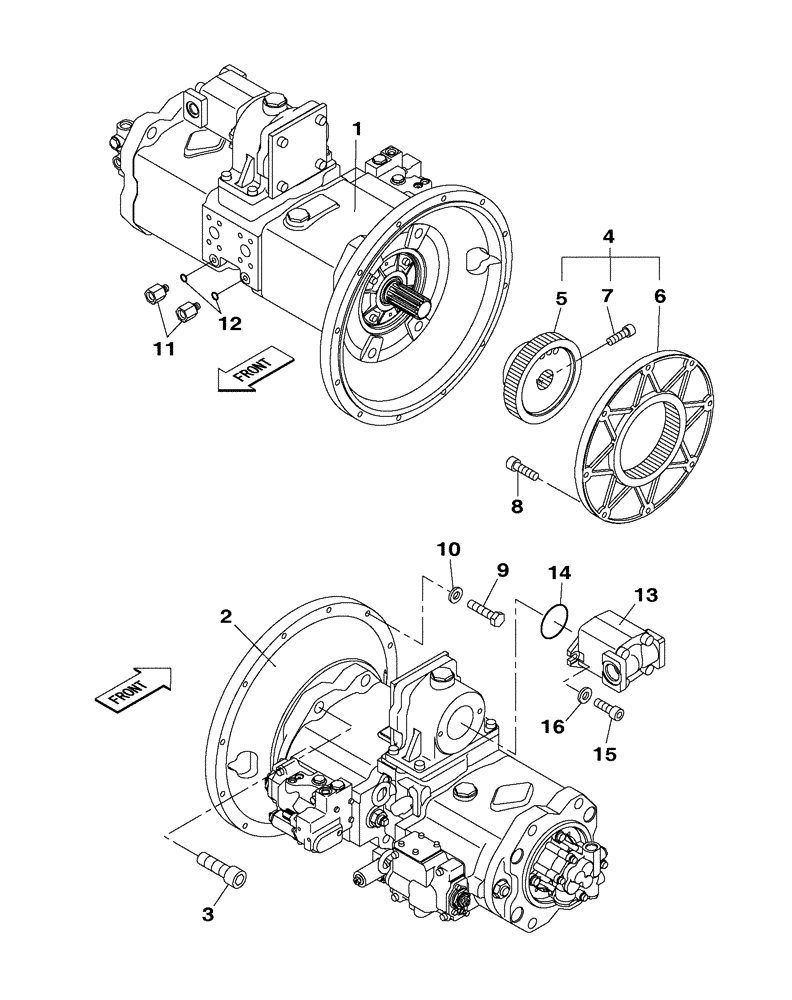

Схема запчастей Case CX350C - (08-002[02]) - HYDRAULIC PUMP - COUPLING - WITH AUXILIARY HYDRAULICS (08) - HYDRAULICS
15
14
4
12
10
16
7
2
6
11
5
3
9
13
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSJ16740

PUMP

1шт.

See Figure(s) 08-105-00 01 - 08-109-00 01

1шт.

1

KSJ16740R

REMAN-HYD PUMP

CX350C CRAWLER EXCAVATOR TIER 4 (NA), WITH AUXILIARY HYDRAULICS

1шт.

1

KSJ16740C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

KTJ2041

FLANGE

1шт.

3

108R020Y065R

BOLT

4шт.

4

KSJ12611

COUPLING FLANGE

1шт.

Include(s) 5 - 7

1шт.

5

KSJ12621

HUB

1шт.

6

KTJ2234

FLANGE

1шт.

7

KSJ12860

BOLT

1шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

9

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

9шт.

10

150409A1

WASHER

9шт.

11

KHJ18180

STUD

2шт.

Include(s) 12

1шт.

12

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

13

KRJ10300

HYDRAULIC PUMP

1шт.

See Figure(s) 08-120-00 01

1шт.

13

KRJ10300R

REMAN-HYD PUMP

CX350C CRAWLER EXCAVATOR TIER 4 (NA), WITH AUXILIARY HYDRAULICS

1шт.

13

KRJ10300C

CORE-HYDRAULIC PUMP

Return Number

1шт.

14

154697A1

O-RING

1шт.

15

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

16

150409A1

WASHER

2шт.
