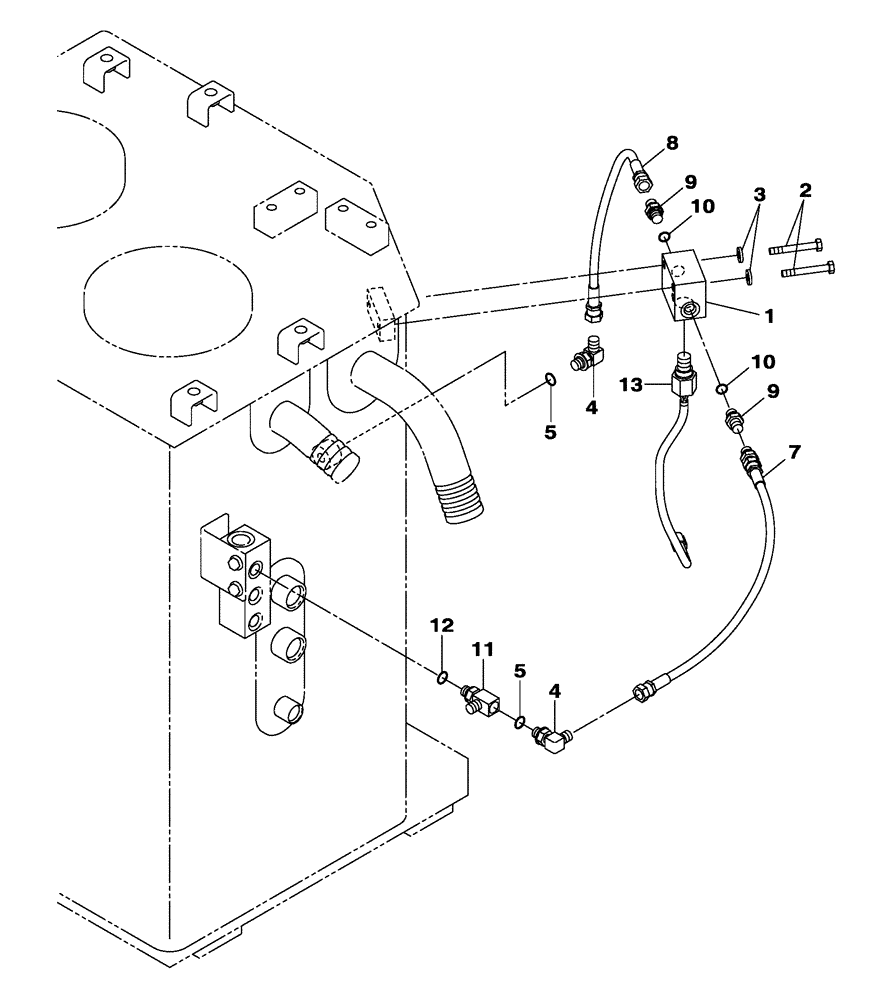

Запчасти Case CX350C (08-001[02]) - HYDRAULIC RESERVOIR - OPTIONAL (08) - HYDRAULICS

1

KHJ11730

MANIFOLD VALVE

1шт.

2

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

3

153081A1

WASHER

2шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

KHJ2394

HOSE ASSY.

550 mm

1шт.

8

KHJ2044

HOSE,6.3mm ID x 350mm L

350 mm

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

Include(s) 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KHJ2773

TEE

1шт.

Include(s) 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

KHR14470

PRESSURE SWITCH

, Serial Range: -NCSAP1210

1шт.

13

KHR32870

SENSOR

, Start Serial: NCSAP1211

1шт.
