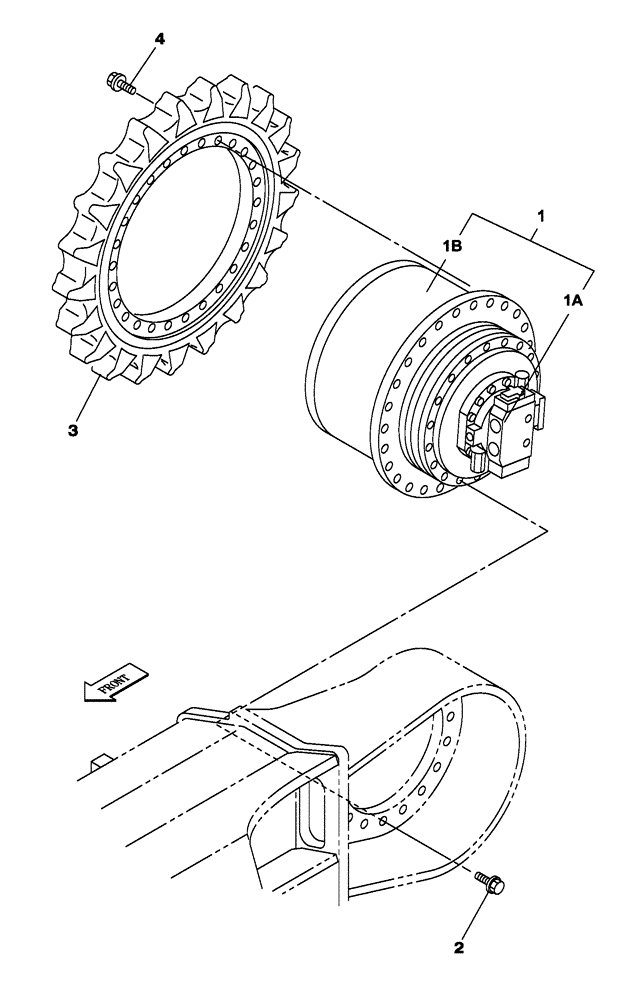

Запчасти Case CX350C (06-001[00]) - TRAVEL MOTOR AND REDUCTION GEAR (06) - POWER TRAIN

1

KSA10222

MOTO-REDUCTION GEAR

2шт.

Include(s) 1A, 1B

1шт.

1a

LJ018710

HYDRAULIC MOTOR

1шт.

See Figure(s) 07-011-00 01, 07-012-00 01

1шт.

1

LJ018710R

REMAN-HYD MOTOR

2шт.

1

LJ018710C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

1b

LN002190

REDUCER

1шт.

See Figure(s) 06-010-00 01

1шт.

2

105R024Y070R

BOLT

M24 x 70

36шт.

3

KSA1061

SPROCKET

2шт.

4

166353A1

BOLT,Flng, M20 x 65mm, Cl 10.9

M20 x 65

52шт.
