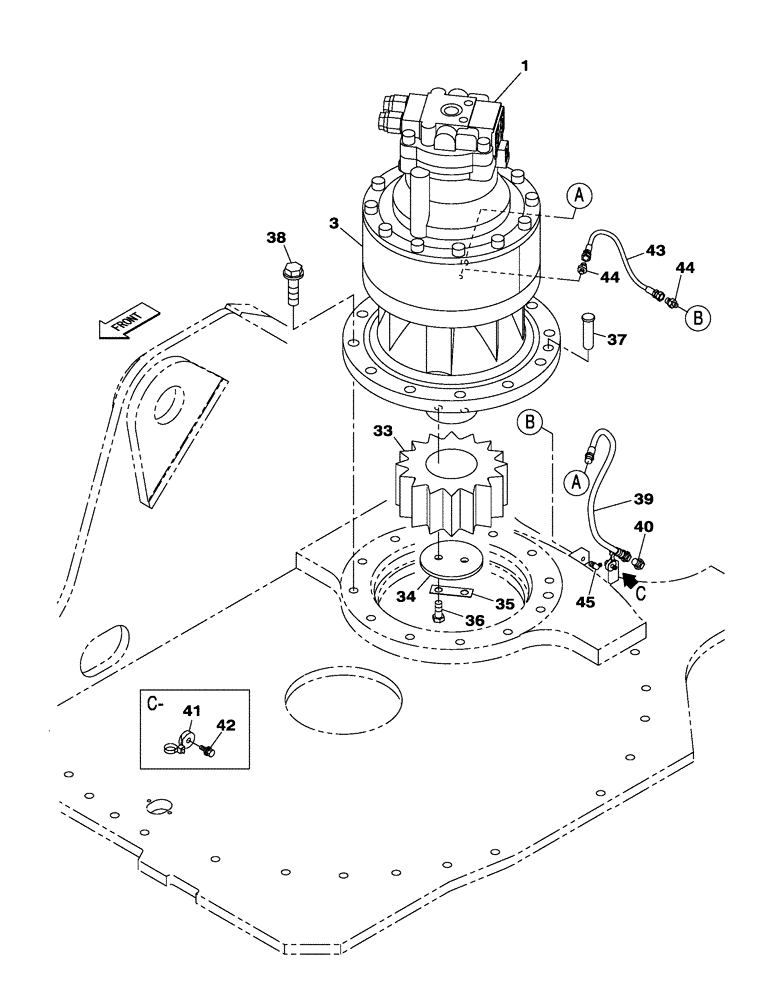

Запчасти Case CX300C (06-002-00[01]) - SWING MOTOR-DRIVE REDUCTION GEAR (08) - HYDRAULICS

1

KBC10130

HYDRAULIC MOTOR

1шт.

See Figure(s) 08-220-00 01

1шт.

1

LJ016070R

REMAN-HYD MOTOR

1шт.

1

LJ016070C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

KSC0253

REDUCER

1шт.

See Figure(s) 06-002-01 01

1шт.

3

KSC10250R

REMAN-REDUCTION UNIT

CX300C CRAWLER EXCAVATOR TIER 4 (NA) (3/11-), Reman for New PN KSC0253

1шт.

3

KSC10250C

CORE-REDUCTION UNIT

Return Number

1шт.

33

KBC0124

GEAR

1шт.

34

150285A1

PLATE, LOCKING

1шт.

35

167069A1

WASHER

1шт.

36

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

37

150317A1

HEADED PIN,24mm OD x 90mm L

1шт.

38

166477A1

BOLT,Sems, M24 x 90mm

12шт.

39

KBJ16120

HOSE ASSY.

600 MM

1шт.

40

KHP0501

PLUG

1шт.

41

KHR2584

CLAMP

1шт.

42

KHJ1215

BOLT,Spcl

1шт.

43

167865A1

HYDRAULIC HOSE,6.30 mm ID x 450.00 mm

1шт.

44

KRJ4050

ADAPTER

2шт.

45

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.
