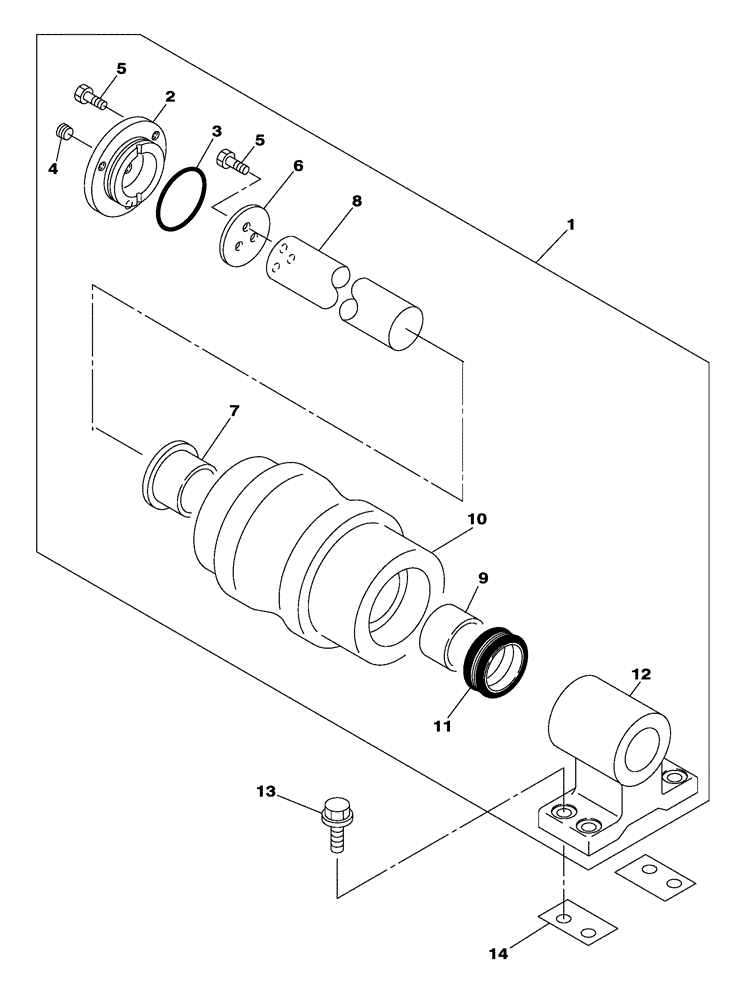

Запчасти Case CX300C (05-002-00[01]) - ROLLER UPPER (11) - TRACKS/STEERING

1

KBA1141

ROLLER ASSY.

4шт.

Include(s) 2 - 13

1шт.

2

KTA1149

COVER

1шт.

3

154703A1

O-RING,0.001mm ID x 0.001mm Width

1шт.

4

150821A1

PLUG

1/4

1шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

6

166555A1

PLATE, THRUST

1шт.

7

160423A1

BUSHING,65mm ID x 87mm OD x 69mm L

1шт.

8

166556A1

PIN

1шт.

9

166557A1

BEARING

1шт.

10

KTA1104

SHIFTER ROLLER

1шт.

11

166559A1

SEAL

1шт.

12

KSA1268

CASING, BEARING ROLL

1шт.

13

105R020Y050R

BOLT

M20 x 50

16шт.

14

KSA1147

SHIM

1шт.
